Unit-05/Lecture-01 |
||||||||
|
Market-based management
of Clouds |
||||||||
|
Market-based management of Clouds · Cloud computing already embodies the concept of
providing IT assets as utilities. Firstly, it is important to understand what
we intend by the term market which makes cloud computing different from
market-oriented cloud computing. · The Oxford English Dictionary (OED) defines a
market as a “place where a trade is conducted”. More precisely, market refers
to a meeting or a gathering together of people for the purchase and sale of
goods. A broader characterization defines the term market as the action of buying
and selling, a commercial transaction, a purchase, or a bargain. Therefore, essentially
the word market is the act of trading mostly performed in an environment—either
physical or virtual that is specifically dedicated to such activity. · What differentiates market-oriented cloud computing
(MOCC) from cloud computing is the presence of a virtual market place where
IT services are traded and brokered dynamically. This is something that still
has to be achieved and that will significantly evolve the way cloud computing
services are eventually delivered to the consumer. More precisely, what is
missing is the availability of a market where desired services are published
and then automatically bid on by matching the requirements of customers and
providers. · We can clearly characterize the relationship
between cloud computing and MOCC as follows: “Market Oriented Computing has the same characteristics as
Cloud Computing; therefore it is a dynamically provisioned unified computing
resource allowing you to manage software and data storage as on aggregate
capacity resulting in “real-time” infrastructure across public and private
infrastructures. Market Oriented Cloud Computing goes one step further by
allowing spread into multiple public and hybrid environments dynamically
composed by trading service.” · The realization of this vision is technically
possible today but is not probable, given the lack of standards and overall
immaturity of the market. Nonetheless, it is expected that in the near
future, with the introduction of standards, concerns about security and trust
will begin to disappear and enterprises will feel more comfortable leveraging
a market-oriented model for integrating IT infrastructure and services from
the cloud. Moreover, the presence of a demand-based marketplace represents an
opportunity for enterprises to shape their infrastructure for dynamically
reacting to workload spikes and for cutting maintenance costs. It also allows
the possibility to temporarily lease some in-house capacity during low usage
periods, thus giving a better return on investment. These developments will
lead to the complete realization of market-oriented cloud computing. A reference model for MOCC Market-oriented cloud
computing originated from the coordination of several components: service
consumers, service providers, and other entities that make trading between
these two groups possible. Market orientation not only influences the
organization on the global scale of the cloud computing market. It also
shapes the internal architecture of cloud computing providers that need to
support a more flexible allocation of their resources, which is driven by
additional parameters such as those defining the quality of service. · A global view of market-oriented cloud computing A reference scenario that realizes MOCC at a global scale
is given in Figure 5.1. It provides guidance on how MOCC can be implemented
in practice. ·
Several
components and entities contribute to the definition of a global
market-oriented architecture. The fundamental component is the virtual
marketplace—represented by the Cloud Exchange (CEx)—which acts as a market
maker, bringing service producers and consumers together. The principal
players in the virtual marketplace are the cloud coordinators and the cloud
brokers. The cloud coordinators represent the cloud vendors and publish the
services that vendors offer. The cloud brokers operate on behalf of the
consumers and identify the subset of services that match customers’
requirements in terms of service profiles and quality of service. Brokers
perform the same function as they would in the real world: They mediate
between coordinators and consumers by acquiring services from the first and
subleasing them to the latter. Brokers can accept requests from many users. At the same time,
users can leverage different brokers. A similar relationship can be
considered between coordinators and cloud computing services vendors.
Coordinators take responsibility for publishing and advertising services on
behalf of vendors and can gain benefits from reselling services to brokers.
Every single participant has its own utility function that they all want to
optimize rewards. Negotiations and trades are carried out in a secure and
dependable environment and are mostly driven by SLAs, which each party has to
fulfill. There might be different models for negotiation among entities, even
though the auction model seems to be the more appropriate in the current
scenario. The same consideration can be made for the pricing models: Prices
can be fixed, but it is expected that they will most likely change according
to market conditions. ·
Several
components contribute to the realization of the Cloud Exchange and implement
its features. In the reference model depicted in Figure 5.1, it is possible
to identify three major components: 1.Directory 2.Auctioneer 3.Bank Figure 5.1 Market-oriented cloud
computing scenario Ř Directory. The market directory contains a listing of all the
published services that are available in the cloud marketplace. The directory
not only contains a simple mapping between service names and the
corresponding vendor (or cloud coordinators) offering them. It also provides
additional metadata that can help the brokers or the end users in filtering
from among the services of interest those that can really meet the expected
quality of service. Moreover, several indexing methods can be provided to
optimize the discovery of services according to various criteria. This
component is modified in its content by service providers and queried by
service consumers. Ř Auctioneer. The auctioneer is in
charge of keeping track of the running auctions in the marketplace and of
verifying that the auctions for services are properly conducted and that
malicious market players are prevented from performing illegal activities. Ř Bank. The bank is the component that
takes care of the financial aspect of all the operations happening in the
virtual marketplace. It also ensures that all the financial transactions are
carried out in a secure and dependable environment. Consumers and providers
may register with the bank and have one or multiple accounts that can be used
to perform the transactions in the virtual marketplace. This organization, as described, constitutes only a
reference model that is used to guide system architects and designers in
laying out the foundations of a Cloud Exchange system. In reality, the
architecture of such a system is more complex and articulated since other
elements have to be taken into account. For instance, since the cloud
marketplace supports trading, which ultimately involves financial
transactions between different parties, security becomes of fundamental
importance. It is then important to put in place all the mechanisms that
enable secure electronic transactions. -----------------------------REFERENCE {book: M.K. Mastering of Cloud
Computing, May 2013, Page No. 378-381}
|
|
Unit-05/Lecture-02 Market-based management of Clouds (….continued) |
||||||||
|
·
Market-oriented architecture for datacenters Datacenters are the building blocks of the computing
infrastructure that backs the services offered by a cloud computing vendor,
no matter its specific category (IaaS, PaaS, or SaaS). In this section, we
present these systems by taking into account the elements that are
fundamental for realizing computing infrastructures that support MOCC. These
criteria govern the logical organization of these systems—rather than their
physical layout and hardware characteristics—and provide guidance for
designing architectures that are market oriented. In other words, we describe

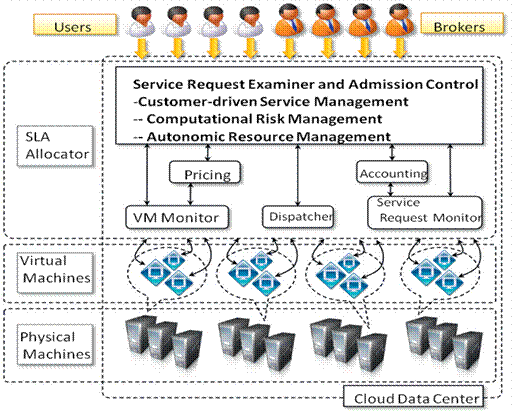

reference architecture for MOCC datacenters. Figure 5.2 provides an overall view of the components that
can support a cloud computing provider in making available its services on a
market-oriented basis. More specifically, the model applies to PaaS and IaaS
providers that explicitly leverage virtualization technologies to serve
customers’ needs. There are four major components of the architecture: Ř Users and brokers: They originate the workload that is managed in the
cloud data center. Users either require virtual machine instances to which to
deploy their systems (IaaS scenario) or deploy applications in the virtual
environment made available to them by the provider (PaaS scenario).These
service requests are issued by service brokers that act on behalf of users
and look for the best deal for them. Ř SLA resource allocator: The allocator
represents the interface between the data center and the cloud service
provider and the external world. Its main responsibility is ensuring that service
requests are satisfied according to the SLA agreed to with the user. Several
components coordinate allocator activities in order to realize this goal. Figure 5.2
Reference architecture for a cloud datacenter Ř Service
Request Examiner and Admission Control Module: This module operates in the front-end and filters user and
broker requests in order to accept those that are feasible given the current
status of the system and the workload that is already processing. Accepted
requests are allocated and scheduled for execution. IaaS service providers
allocate one or more virtual machine instances and make them available to
users. PaaS providers identify a suitable collection of computing nodes to
which to deploy the users’ applications. Ř Pricing Module: This module is responsible for charging users
according to the SLA they signed. Different parameters can be considered in
charging users; for instance, the most common case for IaaS providers is to
charge according to the characteristics of the virtual machines requested in
terms of memory, disk size, computing capacity, and the time they are used.
It is very common to calculate the usage in time blocks of one hour, but
several other pricing schemes exist. PaaS providers can charge users based on
the number of requests served by their application or the usage of internal
services made available by the development platform to the application while
running. Ř Accounting
Module: This module maintains the
actual information on usage of resources and stores the billing information
for each user. These data are made available to the Service Request Examiner
and Admission Control module when assessing users’ requests. In addition,
they constitute a rich source of information that can be mined to identify usage
trends and improve the vendor’s service offering. • Dispatcher. This component is responsible for the
low-level operations that are required to realize admitted service requests.
In an IaaS scenario, this module instructs the infrastructure to deploy as
many virtual machines as are needed to satisfy a user’s request. In a PaaS
scenario, this module activates and deploys the user’s application on a
selected set of nodes; deployment can happen either within a virtual machine
instance or within an appropriate sandboxed environment. Ř Resource
Monitor: This component monitors the
status of the computing resources, either physical or virtual. IaaS providers
mostly focus on keeping track of the availability of VMs and their resource
entitlements. PaaS providers monitor the status of the distributed
middleware, enabling the elastic execution of applications and loading of
each node. Ř Service
Request Monitor: This
component keeps track of the execution progress of service requests. The
information collected through the Service Request Monitor is helpful for
analyzing system performance and for providing quality feedback about the
provider’s capability to satisfy requests. For instance, elements of interest
are the number of requests satisfied versus the number of incoming requests,
the average processing time of a request, or its time to execution. These
data are important sources of information for tuning the system. The SLA
allocator executes the main logic that governs the operations of a single
datacenter or a collection of datacenters. Features such as failure
management are most likely to be addressed by other software modules, which
can either be a separate layer or can be integrated within the SLA resource
allocator. Ř Virtual
machines (VMs): Virtual
machines constitute the basic building blocks of a cloud computing
infrastructure, especially for IaaS providers. VMs represent the unit of
deployment for addressing users’ requests. Infrastructure management software
is in charge of keeping operational the computing infrastructure backing the
provider’s commercial service offering. As we discussed, VMs play a
fundamental role in providing an appropriate hosting environment for users’
applications and, at the same time, isolate application execution from the
infrastructure, thus preventing applications from harming the hosting
environment. Moreover, VMs are among the most important components
influencing the QoS with which a user request is served. VMs can be tuned in terms of their emulated hardware
characteristics so that the amount of computing resource of the physical
hardware allocated to a user can be finely controlled. PaaS providers do not
directly expose VMs to the final user, but they may internally leverage
virtualization technology in order to fully and securely utilize their own
infrastructure. As previously discussed PaaS providers of ten leverage given middleware
for executing user applications and might use different QoS parameters to charge
application execution rather than the emulated hardware profile. Ř Physical machines: At the lowest level of the reference architecture resides
the physical infrastructure that can comprise one or more data centers. This is
the layer that provides the resources to meet service demands. This
architecture provides cloud services vendors with a reference model suitable
to enabling their infrastructure for MOC. As mentioned, these observations
mostly apply to PaaS and IaaS pro- viders, whereas SaaS vendors operate at a
higher abstraction level. Still, it is possible to identify some of the
elements of the SLA resource allocator, which will be modified to deal with
the ser- vices offered by the provider. For instance, rather than linking
user requests to virtual machine instances and platform nodes, the allocator
will be mostly concerned with scheduling the execution of requests within the
provider’s SaaS framework, and lower layers in the technology stack will be
in charge of controlling the computing infrastructure. Accounting, pricing,
and service request monitoring will still perform their roles. Technologies and initiatives supporting MOCC Existing
cloud computing solutions have very limited support for market-oriented
strategies to deliver services to customers. Most current solutions mainly
focused on enabling cloud computing concern the delivery of infrastructure,
distributed runtime environments, and services. Since cloud computing has
been recently adopted, the consolidation of the technology constitutes the
first step toward the full realization of its promise. Until now, a good deal
of interest has been directed toward IaaS solutions, which represent a
well-consolidated sector in the cloud computing market, with several
different players and competitive offers. New PaaS solutions are gaining
momentum, but it is harder for them to penetrate the market dominated by
giants such as Google, Microsoft, and Force.com. ·
Framework for
trading computing utilities -
From an
academic point of view, a considerable amount of research has been carried
out in defining models that enable the trading of computing utilities, with a
specific focus on the design of market-oriented schedulers for grid computing
systems. -
Computing grids aggregate a heterogeneous
set of resources that are geographically distributed and might belong to
different organizations. Such resources are often leased for long-term use by
means of agreements among these organizations. -
Within this context, market-oriented
schedulers, who are aware of the price of a given computing resource and
schedule user’s applications according to their budgets, have been
investigated and implemented. The research in this area is of relevance to
MOCC, since cloud computing leverages preexisting distributed computing
technologies, including grid computing. -
Garg and
Buyya have provided a complete taxonomy and analysis of such schedulers,
which is reported in Figure 5.3. A major classification categorizes these
schedulers according to allocation decision, objective, market model,
application model, and participant focus. Of particular interest is the
classification according to the market model, which is the mechanism used for
trading between users and providers. Along this dimension, it is possible to classify
the schedulers into the following categories: -
Game theory: In market models that are based on game theory,
participants interact in the form of an allocation game, with different
payoffs as a result of specific actions that employ various strategies. -
Proportional share: This market model originates from proportional share
scheduling, which aims to allocate jobs fairly over a set of resources. This
original concept has been contextualized within a market-oriented scenario in
which the shares of the cluster are directly proportional to the user’s bid. -
Commodity market: In this model the resource provider specifies the price of
resources and charges users according to the amount of resources they
consume. The provider’s determination of the price is the result of a
decision process involving investment and management costs, current demand,
and supply. Moreover, prices might be subject to vary over time. -
Posted price: This model is similar to the commodity market, but the
provider may make special offers and discounts to new clients. Furthermore,
with respect to the commodity market, prices are fixed over time. -
Contract-Net.: In market models based on the Contract-Net protocol, users
advertise their demand and invite resource owners to submit bids. Resource
owners check these advertisements with respect to their requirements. If the
advertisement is favorable to them, the providers will respond with a bid.
The user will then consolidate all the bids and compare them to select those
most favorable to him. The providers are then informed about the outcome of
their bids, which can be acceptance or rejection. Figure 5.3 Market-oriented scheduler taxonomy •
Bargaining. In market models based on bargaining, the negotiation among
resource consumers and providers is carried out until a mutual agreement is
reached or it is stopped when either of the parties is no longer interested. -
Auction: In market models based on auctions, the price of resources
is unknown, and competitive bids regulated by a third party—the
auctioneer—contribute to determining the final price of a resource. The bid
that ultimately sets the price of a resource is the winning bid, and the
corresponding user gains access to the resource. The
most popular and interesting market models for trading computing utilities
are the commodity market, posted price, and auction models. Commodity market
and posted price models, or variations/combinations of them, are driving the
majority of cloud computing services offerings today. Auction-based models
can instead potentially constitute the reference market-models for MOCC,
since they are able to seamlessly support dynamic negotiations. -----------------------------REFERENCE {book: M.K. Mastering of Cloud
Computing, May 2013, Page No. 381-387}
|
|
Unit-05/Lecture-03 Market-based
management of Clouds (….continued) |
|
Industrial implementations Even though
market-oriented models have been mostly developed in the academic domain,
industrial implementations of some aspects of MOCC are becoming available and
gaining popularity. In particular, some interesting initiatives show how
different aspects of MOCC, such as flexible pricing models, virtual market
place, and market directories, have been made available to the wider public. · Flexible pricing models: amazon spot instances -
Amazon Web
Services (AWS), one of the biggest players in the IaaS market, recently
introduced the concept of spot instances, which allows EC2 customers to bid
on unused Amazon EC2 capacity and run those instances for as long as their
bid exceeds the current spot price. -
The spot
price varies periodically according to the supply of and demands for EC2
instances and is kept constant within a single hour block. Spot instances can
be terminated at any time, and they are usually priced at a lower price with
respect to the traditional (on-demand and reserved) instances, since they
rely on exceeding capacity available in the EC2 infrastructure. -
Therefore, it is the responsibility of the
user to periodically persist the state of applications executing within spot
instances. Spot instances represent an interesting opportunity for both
Amazon and EC2 users to benefit from the current condition of the market: The
provider can make revenue from a capacity that would have been wasted if
priced at the normal level, and the consumer has the opportunity to pay less
by taking major risks. Despite their volatile nature, spot instances have
been demonstrated to be reasonably reliable and usable for performing tasks
that have a lower priority and are not critical. In other words, they are
suitable for applications that can tolerate QoS limitations. Moreover, they
are profitably used to extend the capacity of an existing infrastructure at
lower costs. -

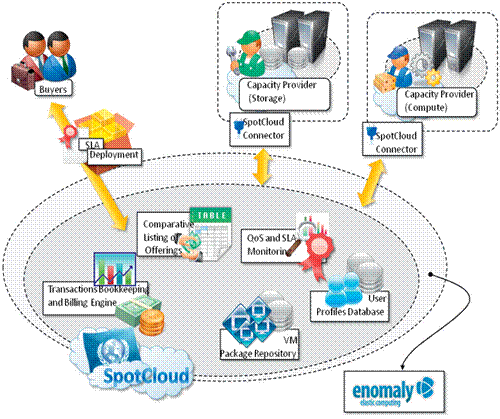

· Virtual market place: Spot Cloud Spot Cloud is an online portal that implements a virtual marketplace,
where sellers and buyers can register and trade cloud computing services. The
platform is a market place operating in the IaaS sector. Buyers are looking for
compute capacity that can meet the requirements of their applications, while sellers
can make available their infrastructure to serve buyers ’needs and earn revenue.
Spot Cloud provides a comprehensive set of features that are expected for a virtual
market place. Some of them include. • Detailed logging of
all the buyers ’transactions. • Full metering, billing
for any capacity. • Full control over pricing
and availability of capacity in the market. • Management of quotas
and utilization levels for providers. • Federation management
(many providers, many customers, but one platform). • Hybrid cloud support
(internal and external resource management). • Full market administration
and reporting. • Applications and pre-build
appliances directories. Besides being an online portal, the virtual market realized
by Spot Cloud can also be replicated in the private premises. Transactions are
carried out with real money and based on credit that buyers and sellers must top
up once they create an account. Spot Cloud is the most representative implementation of a
platform hat enables MOCC, even though with some limitations. Spot Cloud’s working
principle is a common and unique platform that sellers need to share in order
to join the portal and make available computing capacity. Spot Cloud currently
supports Enomaly ECP5 and Open Stack. -----------------------------REFERENCE {book: M.K. Mastering of Cloud
Computing, May 2013, Page No. 387-388}
|
|
Unit-05/Lecture-04 Federated clouds/Inter Cloud |
||||||||||||||||||||||||||||
|
Federated clouds/Inter Cloud Cloud federation and the
Inter Cloud. These are enablers for MOCC since they provide means for interoperation
among different cloud providers. Cloud computing strongly implies the presence
of financial agreements between parties, since services are available on demand
on a pay-per-use basis. None the less, the concepts characterizing cloud
federation and the Inter Cloud are applicable, with some limitations, to
building aggregations of clouds that belong to different administrative
domains.
Characterization and definition · The terms cloud federation and InterCloud, often
used interchangeably, conveys the general meaning of an aggregation of cloud
computing providers that have separate administrative domains. It is
important to clarify what these two terms mean and how they apply to cloud
computing. · The term federation implies the creation of an
organization that supersedes the decisional and administrative power of the
single entities and that acts as a whole. Within a cloud computing context,
the word federation does not have such a strong connotation but implies that
there are agreements between the various cloud providers, allowing them to
leverage each other’s services in a privileged manner. · A definition
of the term cloud federation was given by Reuven Cohen, founder and CTO of
Enomaly Cloud federation manages consistency and access controls when two or
more independent geo-graphically distinct Clouds share either authentication,
files, computing resources, command and control or access to storage
resources. This definition is broad enough to include all the different
expressions of cloud services aggregations that are governed by agreements
between cloud providers, rather than composed by the user. · InterCloud is a term that is often used
interchangeably to express the concept of Cloud federation. It was introduced
by Cisco for expressing a composition of clouds that are interconnected by means
of open standards to provide a universal environment that leverages cloud computing
services. · By mimicking the Internet term, often referred as the
“network of networks,” Inter Cloud represents a “Cloud of Clouds” and
therefore expresses the same concept of federating together clouds that belong
to different administrative organizations. · The primary difference between the Inter Cloud and federation
is that the Inter Cloud is based on future standards and open interfaces, while
federation uses a vendor version of the control plane. With the Inter Cloud vision,
all Clouds will have a common understanding of how applications should be deployed.
· Eventually workloads submitted to a Cloud will include
enough of a definition (resources, security, service level, geo location, etc.)
that the Cloud is able to process the request and deploy the application. This
will create the true utility model, where all the requirements are met by the
definition and the application can execute “as is “in any Cloud with the
resources to support it. · Therefore, the
term Inter Cloud refers mostly to a global vision in which interoperability among
different cloud providers is governed by standards, thus creating an open platform
where applications can shift workloads and freely compose services from different
sources. · On the other hand, the concept of a cloud
federation is more general and includes ad hoc aggregations between cloud
providers on the basis of private agreements and proprietary interfaces. -----------------------------REFERENCE {book: M.K. Mastering of Cloud
Computing, May 2013, Page No. 390-392}
|
|
Unit-05/Lecture-05 Cloud Federation stack |
||||||||
|
·
Cloud Federation stack Creating a cloud
federation involves research and development at different levels: conceptual,
logical and operational, and infrastructural. Figure 5.4 provides a comprehensive
view of the challenges faced in designing and implementing an organizational structure
that coordinates together cloud services that belong to different administrative
domains and makes them operate with in a context of a single unified service middleware.
Each cloud federation level presents different challenges and operates at a different
layer of the IT stack. It then requires the use of different approaches and technologies.
Taken together, the solutions to the challenges faced at each of these levels
constitute a reference model for a cloud federation. Ř Conceptual
level: -
The
conceptual level addresses the challenges in presenting a cloud federation as
a favorable solution with respect to the use of services leased by single
cloud providers. -
In this level
it is important to clearly identify the advantages for either service
providers or service consumers in joining a federation and to delineate the
new opportunities that a federated environment creates with respect to the
single provider solution. Elements of concern at this level are: -
• Motivations for cloud providers to join a
federation Motivations for service consumers to leverage a federation. • Advantages for providers in leasing their services to
other providers. • Obligations of
providers once they have joined the federation • Trust agreements between providers
Figure 5.4 Cloud federation reference stack • Transparency versus consumers Among these aspects, the
most relevant is the motivations of both service providers and consumers in
joining a federation. From the perspective of cloud service providers, being
part of federation is favorable if it helps increase their revenue and if it
provides new opportunities to increase their business. Moreover, the option of joining a federation can also be
considered convenient if it helps sustain the QoS ensured to customers in
periods of peak load, which put extreme demand on the infrastructure of the
single provider. More precisely, it is possible to identify functional and
nonfunctional requirements that cloud service providers have behind these
motivations. The functional
requirements include: -
Supplying
low-latency access to customers, regardless of their location. It is very
unlikely that single cloud providers have a capillary distribution of their
datacenters. Therefore, services that require low latency might provide poor
performance because of unfortunate geo-location. Within this scenario the
federation might help the single providers deliver the same service and meet
the expected QoS. -
Handling
bursts in demand. Even though cloud computing gives the illusion of infinite
capacity and continuous availability, service providers rely on a finite. IT
infrastructure that eventually will be fully utilized. A natural solution to this
problem is increasing the infrastructure by adding more capacity. For example, to keep up with
the increasing demand for storage and computation, Google has increased its number
of servers from 8,000 to more than 450,000 in five years and moved from four server
farms to more than 60 datacenters, Facebook has recently doubled its datacenter
capacity. Such huge provisions are affordable for large IT companies that can
make appropriate forecasts about increasing demand. Irregular demand can be
better addressed by renting capacity from other providers, since not every cloud
provider is in the position of being an IT giant. Cloud federation facilitates
such activity by providing a context within which the lease of resources or services
is encouraged. -
Scaling existing
applications and services beyond the capabilities of the owned infrastructure.
The need for additional capacity can also originate from the grow thin scale of
existing applications that are temporarily hosted and do not constitute a vital
part of the service provider core business. Again, the opportunities for leasing
additional services from a federated provider can constitute a potential advantage
for a cloud federation. -
Make revenue from unused capacity. To
provide the illusion of continuous availability and infinite capacity, cloud service
providers generally own large computing systems, which generate costs in terms
of maintenance and power consumption despite their real use. Energy-
efficient computing solutions can help reduce costs and the impact of IT on the
environment. A different opportunity is given by the cloud federation, where by
providers can lease their services to other providers for a limited period of
time and thus make revenue, even without direct customers. -----------------------------REFERENCE {book: M.K. Mastering of Cloud Computing, May 2013, Page
No. 392-394}
|
|
Unit-05/Lecture-06 Cloud
Federation stack (….continued) |
|
Logical and
operational level -
The logical
and operational level of a federated cloud identifies and addresses the
challenges in devising a framework that enables the aggregation of providers
that belong to different administrative domains within a context of a single
overlay infrastructure, which is the cloud federation. -
At this
level, policies and rules for interoperation are defined. Moreover, this is
the layer at which decisions are made as to how and when to lease a service
to—or to leverage a service from— another provider. The logical component
defines a context in which agreements among providers are settled and
services are negotiated, whereas the operational component characterizes and
shapes the dynamic behavior of the federation as a result of the single
providers’ choices. -
This is the level where MOCC is implemented
and realized. -
It is important at this level to address the
following challenges: • How should a federation be represented? • How should we model and represent a cloud service, a
cloud provider, or an agreement? • How should we define the rules and policies that allow
providers to join a federation? • What are the
mechanisms in place for settling agreements among providers? • What are provider’s
responsibilities with respect to each other? • When should
providers and consumers take advantage of the federation? • Which kinds of
services are more likely to be leased or bought? • How should we price resources that are leased, and which
fraction of resources should we lease? -
The logical
and operational level provides opportunities for both academia and industry.
Whereas the need for a federation—or more generally, some sort of
interoperation—has now been assessed, there is no common and clear guideline
for defining a model for cloud federation and addressing these challenges.
Indeed, several initiatives are developing. -
Particular
attention on this level has been put on the necessity for SLAs and their
definition. The need for SLAs is an accepted fact in both academy and
industry, since SLAs define more clearly what is leased or bought between
different providers. Moreover, SLAs allow us to assess whether the services
traded are delivered according to the expected quality profile. It is then
possible to specify policies that regulate the transactions among providers
and establish penalties in case of degraded service delivery. This is
particularly important because it increases the level of trust that each
party puts in cloud federation. -
SLAs define
the provider’s performance delivery ability, the consumer’s performance
profile, and the means to monitor and measure the delivered performance. An
implementation of an SLA should specify: • Purpose. Objectives to achieve by using a SLA. • Restrictions. Necessary steps or actions that need to be
taken to ensure that the requested level of service is delivered. • Validity period. Period of time during which the SLA is
valid. • Scope. Services that will be delivered to the consumer
and services that are outside the SLA. • Parties. Any involved organizations or individual and
their roles (e.g. provider, consumer). • Service-level objectives (SLOs). Levels of services on which
both parties agree. These are expressed by means of service-level indicators
such as availability, performance, and reliability. • Penalties. The penalties that will occur if the delivered
service does not achieve the defined SLOs. • Optional services. Services that are not mandatory but
might be required. • Administration.
Processes that are used to guarantee that SLOs are achieved and the related
organization responsibilities for controlling these processes. Ř Infrastructural
level - The infrastructural level addresses the technical
challenges involved in enabling heterogeneous cloud computing systems to
interoperate seamlessly. - It deals with the technology barriers that keep
separate cloud computing systems belonging to different administrative domains.
By having standardized protocols and interfaces, these barriers can be
overcome. - In other words, this level for the federation is
what the TCP/IP stack is for the Internet: a model and a reference
implementation of the technologies enabling the interoperation of systems.
The infrastructural level lays its foundations in the IaaS and PaaS layers of
the Cloud Computing Reference Model. - Services for interoperation and interface may also
find implementation at the SaaS level, especially for the realization of
negotiations and of federated clouds. -At this level it is important to address the
following issues: • What kind of
standards should be used? • How should design
interfaces and protocols be designed for interoperation? • Which are the
technologies to use for interoperation? • How can we realize
a software system, design platform components, and services enabling
interoperability? -
Interoperation
and composition among different cloud computing vendors is possible only by
means of open standards and interfaces. -
Moreover,
interfaces and protocols change considerably at each layer of the Cloud
Computing Reference Model. As the more mature layer, the IaaS layer has
evolved more in this sense. Almost every IaaS provider exposes Web interfaces
for packaging virtual machine templates, launching, monitoring, and
terminating virtual instances. -
Even though not standardized, these
interfaces leverage the Web services and are quite similar to each other. The
use of a common technology simplifies the interoperation among vendors, since
a minimum amount of code is required to enable such interoperation. These
APIs allow for defining an abstraction layer that uniformly accesses the
services of several IaaS vendors. -
There are
already tools—both open-source and commercial—and specifications that provide
interoperability by implementing such a layer. Composition is also
important in considering interoperability across cloud computing platforms
operating at different layers. Even in this case it is important to note that,
currently, cloud computing providers operating at one layer often implement
on their own infrastructure any lower layer that is required to provide the
service to the end user, and they are not willing to open their stack of
technologies to support interoperation. The vision proposed by a federated
environment of cloud service vendors still poses a lot of challenges at each
level, especially the logical and infrastructural level, where appropriate
system organizations need to be designed and effective technologies need to
be deployed. Considerable research effort has been carried out on the logical
and operational level, and initial implementations and drafts of
interoperable technologies are now developed especially for the IaaS market
segment. -----------------------------REFERENCE {book: M.K. Mastering of Cloud
Computing, May 2013, Page No. 396-399}
|
|
Unit-05/Lecture-07 Third-party cloud services |
||||||||
|
Third-party cloud services One of the key elements
of cloud computing is the possibility of composing services that belong to
different vendors or integrating them in to existing software systems. The
service oriented model, which is the basis of cloud computing, facilitates
such an approach and provides the opportunity for developing a new class of services
that can be called third-party cloud services. Examples of third-party
services: Ř MetaCDN ·
MetaCDN
provides users with a Content Delivery Network (CDN) service by leveraging
and harnessing together heterogeneous storage clouds. ·
It implements
a software overlay that coordinates the service offerings of different cloud
storage vendors and uses them as distributed elastic storage on which the
user content is stored. ·
MetaCDN provides users with the high-level
services of a CDN for content distribution and interacts with the low-level
interfaces of storage clouds to optimally place the user content in
accordance with the expected geography of its demand. By leveraging the cloud
as a storage back-end it makes a complex—and generally expensive—content delivery
service available to small enterprises. ·
The

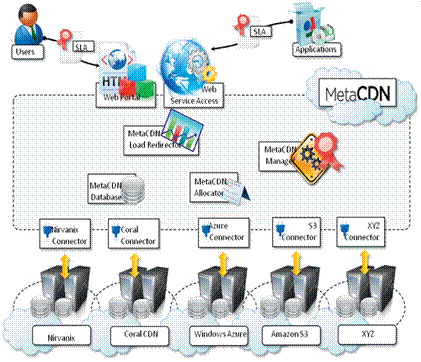

architecture of MetaCDN is shown in Figure 5.5 ·
The MetaCDN
interface exposes its services through users and applications through the
Web; users interact with a portal, while applications take advantage of the
programmatic access provided by means of Web services. Figure
5.5 MetaCDN architecture ·
The main
operations of MetaCDN are the creation of deployments over storage clouds and
their management. The portal constitutes a more intuitive interface for users
with basic requirements, while the Web service provides access to the full
capabilities of MetaCDN and allows for more complex and sophisticated
deployment. ·
In
particular, four different deployment options can be selected: Ř Coverage and performance-optimized deployment. In
this case MetaCDN will deploy as many replicas as possible to all available
locations. Ř Direct
deployment. In this case MetaCDN allows the selection of the deployment
regions for the content and will match the selected regions with the
supported providers serving those areas. Ř Cost-optimized deployment. In this case
MetaCDN deploys as many replicas in the locations identified by the
deployment request. The available storage transfer allowance and budget will
be used to deploy the replicas and keep them active for as long as possible. Ř QoS optimized deployment. In this case MetaCDN
selects the providers that can better match the QoS requirements attached to
the deployment, such as average response time and throughput from a
particular location. ·
A collection
of components coordinate their activities in order to offer the services we
described. These constitute the additional value that MetaCDN brings on top
of the direct use of storage clouds by the users. Of particular importance
are three components. ·
The MetaCDN
Manager, the MetaCDN QoS Monitor, and the Load Redirector. The Manager is
responsible for ensuring that all the content deployments are meeting the
expected QoS. It is supported in this activity by the Monitor, which
constantly probes storage providers and monitors data transfers to assess the
performance of each provider. Ř SpotCloud ·
SpotCloud has
already been introduced as an example of a virtual marketplace. By acting as
an intermediary for trading compute and storage between consumers and service
providers, it provides the two parties with added value. ·
For service consumers, it acts as a market
directory where they can browse and compare different IaaS service offerings
and select the most appropriate solution for them. For service providers it
constitutes an opportunity for advertising their offerings. ·
In addition, it allows users with available
computing capacity to easily turn themselves into service providers by
deploying the runtime environment required by SpotCloud on their
infrastructure.
Figure 5.6 SpotCloud market architecture ·
SpotCloud is
not only an enabler for IaaS providers and resellers, but its intermediary
role also includes a complete bookkeeping of the transactions associated with
the use of resources. Users deposit credit on their SpotCloud account and
capacity sellers are paid following the usual payperuse model. ·
SpotCloud
retains a percentage of the amount billed to the user. Moreover, by
leveraging a uniform runtime environment and virtual machine management
layer, it provides users with a vendor lock-in-free solution, which might be
strategic for specific applications. ·
The two previously presented examples give
an idea of how different in nature third-party services can be: MetaCDN
provides end users with a different service from the simple cloud storage
offerings; SpotCloud does not change the type of service that is finally
offered to end users, but it enriches it with additional features that result
in more effective use of it. -----------------------------REFERENCE {book: M.K. Mastering of Cloud
Computing, May 2013, Page No. 422-426}
|
|
Unit-05/Lecture-08 |
||||||||||||||||||||||||||
|
Case
study: Google app engine and Azure |
||||||||||||||||||||||||||
|
Google App Engine ·
Google AppEngine is a PaaS
implementation that provides services for developing and hosting scalable Web
applications. AppEngine is essentially a distributed and scalable runtime
environment that leverages Google’s distributed infrastructure to scale out
applications facing a large number of requests by allocating more computing
resources to them and balancing the load among them. The runtime is completed
by a collection of services that allow developers to design and implement applications
that naturally scale on AppEngine. Developers can develop applications in
Java, Python, and Go, a new programming language developed by Google to
simplify the development of Web applications. Application usage of Google
resources and services is metered by AppEngine, which bills users when their
applications finish their free quotas. Architecture and core concepts AppEngine is a platform for developing scalable
applications accessible through the Web (see Figure). The platform is
logically divided into four major components: 1.Infrastructure, 2.The runtime environment, 3.The underlying storage, and 4.The set of scalable services that can be used to develop
applications 1.Infrastructure: AppEngine hosts Web
applications, and its primary function is to serve users requests
efficiently. To do so, AppEngine’s infrastructure takes advantage of many
servers available within Google datacenters. For each HTTP request, AppEngine
locates the servers hosting the application that processes the request,
evaluates their load and, if necessary, allocates additional resources (i.e.,
servers) or redirects the request to an existing server. The particular
design of applications, which does not expect any state information to be
implicitly maintained between requests to the same application, simplifies
the work of the infrastructure, which can redirect each of the requests to
any of the servers hosting the target application or even allocate a new one.
The infrastructure is also responsible for monitoring application performance

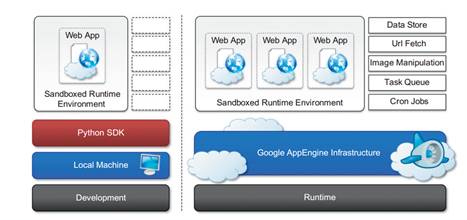

and collecting statistics on which the billing is calculated. Figure
5.7: Google AppEngine platform architecture. 2.Runtime environment: The runtime
environment represents the execution context of applications hosted on
AppEngine. With reference to the AppEngine infrastructure code, which is
always active and running, the runtime comes into existence when the request
handler starts executing and terminates once the handler has completed. ·
Sandboxing
One of
the major responsibilities of the runtime environment is to provide the
application environment with an isolated and protected context in which it
can execute without causing a threat to the server and without being
influenced by other applications. In other words, it provides applications
with a sandbox. Currently,
AppEngine supports applications that are developed only with managed or
interpreted languages, which by design require a runtime for translating
their code into executable instructions. Therefore, sandboxing is achieved by
means of modified runtimes for applications that disable some of the common
features normally available with their default implementations. If an
application tries to perform any operation that is considered potentially
harmful, an exception is thrown and the execution is interrupted. Some of the
operations that are not allowed in the sandbox include writing to the
server’s file system; accessing computer through network besides using Mail,
UrlFetch, and XMPP; executing code outside the scope of a request, a queued
task, and a cron job; and processing a request for more than 30 seconds. ·
Supported
runtimes: Currently, it is possible to develop
AppEngine applications using three different languages and related
technologies: Java, Python, and Go. AppEngine
currently supports Java 6, and developers can use the common tools for Web
application development in Java, such as the Java Server Pages (JSP), and the
applications interact with the environment by using the Java Servlet
standard. Furthermore, access to AppEngine services is provided by means of
Java libraries that expose specific interfaces of provider-specific
implementations of a given abstraction layer. Developers can create
applications with the AppEngine Java SDK, which allows developing
applications with either Java 5 or Java 6 and by using any Java library that
does not exceed the restrictions imposed by the sandbox. Support
for Python is provided by an optimized Python 2.5.2 interpreter. As with
Java, the runtime environment supports the Python standard library, but some
of the modules that implement potentially harmful operations have been
removed, and attempts to import such modules or to call specific methods generate exceptions. To support
application development, AppEngine offers a rich set of libraries connecting
applications to AppEngine services. In addition, developers can use a
specific Python Web application framework, called webapp, simplifying the
development of Web applications. The Go
runtime environment allows applications developed with the Go programming
language to be hosted and executed in AppEngine. Currently the release of Go
that is supported by AppEngine is r58.1. The SDK includes the compiler and
the standard libraries for developing applications in Go and interfacing it
with AppEngine services. As with the Python environment, some of the
functionalities have been removed or generate a runtime exception. In
addition, developers can include third-party libraries in their applications
as long as they are implemented in pure Go. 3.Storage AppEngine provides various types of storage, which
operate differently depending on the volatility of the data. There are three
different levels of storage: in memory-cache, storage for semistructured
data, and long-term storage for static data. In this section, we describe
DataStore and the use of static file servers. We cover MemCache in the
application services section. ·
Static
file servers:
Web applications are composed of dynamic and static data. Dynamic data
are a result of the logic
of the application and the interaction with the user. Static data often are
mostly constituted of the components that define the graphical layout of the
application (CSS files, plain HTML files, JavaScript files, images, icons,
and sound files) or data files. These files can be hosted on static file
servers, since they are not frequently modified. Such servers are optimized
for serving static content, and users can specify how dynamic content should
be served when uploading their applications to AppEngine. ·
DataStore DataStore is a service that allows
developers to store semistructured data. The service is designed to scale and
optimized to quickly access data. DataStore can be considered as a large
object database in which to store objects that can be retrieved by a
specified key. Both the type
of the key
and the structure of the object can vary. With
respect to the traditional Web applications backed by a relational database,
DataStore imposes less constraint on the regularity of the data but, at the
same time, does not implement some of the features of the relational model
(such as reference constraints and join operations). These design decisions
originated from a careful analysis of data usage patterns for Web
applications and were taken in order to obtain a more scalable and efficient
data store. DataStore
provides high-level abstractions that simplify interaction with Bigtable.
Developers define their data in terms of entity and properties, and these are
persisted and maintained by the service into tables in Bigtable. An entity
constitutes the level of granularity for the storage, and it identifies a collection
of properties that define the data it stores. Properties are defined
according to one of the several primitive types supported by the service.
Each entity is associated with a key, which is either provided by the user or
created automatically by AppEngine. DataStore
also provides facilities for creating indexes on data and to update data
within the context of a transaction. Indexes are used to support and speed up
queries. A query can return zero or more objects of the same kind or simply
the corresponding keys. It is possible to query the data store by specifying
either the key or conditions on the values of the properties. Returned result
sets can be sorted by key value or properties value. The
implementation of transaction is limited in order to keep the store scalable
and fast. AppEngine ensures that the update of a single entity is performed
atomically. Multiple operations on the same entity can be performed within
the context of a transaction. It is also possible to update multiple entities
atomically. This is only possible if these entities belong to the same entity
group. The entity group to which an entity belongs is specified at the time
of entity creation and cannot be changed later. With regard to concurrency,
AppEngine uses an optimistic concurrency control: If one user tries to update
an entity that is already being updated, the control returns and the
operation fails. Retrieving an entity never incurs into exceptions. 4.Application services: Applications hosted on AppEngine take the most from
the services made available through the runtime environment. These services
simplify most of the common operations that are performed in Web
applications: access to data, account management, integration of external
resources, messaging and communication, image manipulation, and asynchronous
computation. ·
UrlFetch: Web 2.0 has introduced the concept of
composite Web applications. Different resources are put together and
organized as meshes within a single Web page. Meshes are fragments of HTML
generated in different ways. They can be directly obtained from a remote
server or rendered from an XML document retrieved from a Web service, or they
can be rendered by the browser as the result of an embedded and remote
component. A common characteristic of all these examples is the fact that the
resource is not local to the server and often not even in the same
administrative domain. Therefore, it is fundamental for Web applications to
be able to retrieve remote resources. ·
MemCache AppEngine provides developers with access to
fast and reliable storage, which is DataStore. Despite this, the main
objective of the service is to serve as a scalable and long-term storage,
where data are persisted to disk redundantly in order to ensure reliability
and availability of data against failures. This design poses a limit on how
much faster the store can be compared to other solutions, especially for
objects that are frequently accessed—for example, at each Web request. AppEngine
provides caching services by means of MemCache. This is a distributed
in-memory cache that is optimized for fast access and provides developers
with a volatile store for the objects that are frequently accessed. The
caching algorithm implemented by MemCache will automatically remove the
objects that are rarely accessed. The use of MemCache can significantly
reduce the access time to data; developers can structure their applications
so that each object is first looked up into MemCache and if there is a miss,
it will be retrieved from DataStore and put into the cache for future
lookups. ·
Mail
and instant messaging: Communication is another important aspect of
Web applications. It is common to use email for following up with users about
operations performed by the application. Email can also be used to trigger
activities in Web applications. To facilitate the implementation of such
tasks, AppEngine provides developers with the ability to send and receive
mails through Mail. The service allows sending email on behalf of the
application to specific user accounts. It is also possible to include several
types of attachments and to target multiple recipients. Mail operates
asynchronously, and in case of failed delivery the sending address is
notified through an email detailing the error. ·
Account
management: Web
applications often keep various data that customize their interaction with
users. These data normally go under the user profile and are attached to an
account. AppEngine simplifies account management by allowing developers to
leverage Google account management by means of Google Accounts. The
integration with the service also allows Web applications to offload the
implementation of authentication capabilities to Google’s authentication
system. Compute services Web
applications are mostly designed to interface applications with users by
means of a ubiquitous channel, that is, the Web. Most of the interaction is
performed synchronously: Users navigate the Web pages and get instantaneous
feedback in response to their actions. This feedback is often the result of
some computation happening on the Web application, which implements the
intended logic to serve the user request. Sometimes this approach is not
applicable—for example, in long computations or when some operations need to
be triggered at a given point in time. A good design for these scenarios
provides the user with immediate feedback and a notification once the
required operation is completed. AppEngine offers additional services such as
Task Queues and Cron Jobs that simplify the execution of computations that
are off-bandwidth or those that cannot be performed within the timeframe of
the Web request. Some
other information: ·
Google AppEngine is a scalable
runtime environment mostly devoted to executing Web applications. These take advantage
of the large computing infrastructure of Google to dynamically scale as the
demand varies over time. ·
AppEngine provides both a secure execution
environment and a collection of services that simplify the development of
scalable and high-performance Web applications. ·
These services include
in-memory caching, scalable data store, job queues, messaging, and cron
tasks. Developers can build and test applications on their own machines using
the AppEngine software development kit (SDK), which replicates the production
runtime environment and helps test and profile applications. ·
Once development is complete, developers can
easily migrate their application to AppEngine, set quotas to contain the
costs generated, and make the application available to the world. The
languages currently supported are Python, Java, and Go. ·
Google App Engine, a cloud
computing platform for hosting web application in existing Google
infrastructure, it’s easy to scale, manage and free to use up to a predefined
consumed resources, and it supports Java. For additional charged, please
refer to this GAE billing . ·
Google App Engine is a
Platform as a Service (PaaS) offering that lets you build and run
applications on Google’s infrastructure. App Engine applications are easy to
build, easy to maintain, and easy to scale as your traffic and data storage
needs change. With App Engine, there are no servers for you to maintain. You
simply upload your application and it’s ready to go. ·
Google App Engine supports apps written in
a variety of programming languages. Ř
Java: Using
App Engine’s Java runtime environment, you can build your application using
standard Java technologies. Ř
Python: App
Engine features a fast Python interpreter and standard Python libraries. Ř
PHP: App
Engine uses Google's Cloud Platform services under the hood when you call
standard PHP functions. Ř
Go: App
Engine features a Go runtime environment that runs natively compiled Go code. Google App Engine makes it easy to build and
deploy an application that runs reliably even under heavy load and with large
amounts of data. It includes the following features:
-----------------------------REFERENCE {book: M.K. Mastering of Cloud Computing, May 2013, Page
No. 332-339}
Microsoft Azure: Microsoft Windows Azure is a cloud
operating system built on top of Microsoft datacenters’ infrastructure and
provides developers with a collection of services for building applications
with cloud technology. Services range from compute, storage, and networking
to application connectivity access control, and business intelligence. Any
application that is built on the Microsoft technology can be scaled using the
Azure platform, which integrates the scalability features into the common
Microsoft technologies such as Microsoft Windows Server 2008, SQL Server, and
ASP.NET. Figure provides an overview of
services provided by Azure. These services can be managed and controlled
through the Windows Azure Management Portal, which acts as an administrative
console for all the services offered by the Azure platform. In this section,
we present the core features of the major services available with Azure. Azure
core concepts The Windows Azure platform is made
up of a foundation layer and a set of developer services that can be used to
build scalable applications. These services cover compute, storage,
networking, and identity management, which are tied together by middleware
called AppFabric. This scalable computing environment is hosted within
Microsoft datacenters and accessible through the Windows Azure Management
Portal. Alternatively, developers can recreate a Windows Azure environment
(with limited capabilities) on their own machines for development and testing
purposes. In this section, we provide an overview of the Azure middleware and
its services. Compute services Compute services are the core
components of Microsoft Windows Azure, and they are delivered by means of the
abstraction of roles. A role is a runtime environment that is customized for
a specific compute task. Roles are managed by the Azure operating system and
instantiated on demand in order to address surges in application demand.
Currently, there are three different roles:Web role, Worker role , and
Virtual Machine (VM) role. ·
Web role The Web role is designed to implement
scalable Web applications. Web roles represent the units of deployment of Web
applications within the Azure infrastructure. They are hosted on the IIS 7
Web Server, which is a component of the infrastructure that supports Azure.
When Azure detects peak loads in the request made to a given application, it
instantiates multiple Web roles for that application and distributes the load
among them by means of a load balancer. FIGURE 5.8: Microsoft Windows Azure Platform
Architecture ·
Worker
role Worker roles are designed to
host general compute services on Azure. They can be used to quickly provide
compute power or to host services that do not communicate with the external
world through HTTP. A common practice for Worker roles is to use them to
provide background processing for Web applications developed with Web roles. Developing a worker role is
like a developing a service. Compared to a Web role whose computation is
triggered by the interaction with an HTTP client (i.e., a browser), a Worker
role runs continuously from the creation of its instance until it is shut
down. The Azure SDK provides developers with convenient APIs and libraries
that allow connecting the role with the service provided by the runtime and
easily controlling its startup as well as being notified of changes in the
hosting environment. As with Web roles, the .NET technology provides complete
support for Worker roles, but any technology that runs on a Windows Server
stack can be used to implement its core logic. For example, Worker roles can
be used to host Tomcat and serve JSP-based applications. ·
Virtual
machine role The Virtual Machine role allows developers
to fully control the computing stack of their compute service by defining a
custom image of the Windows Server 2008 R2 operating system and all the
service stack required by their applications. The Virtual Machine role is
based on the Windows Hyper-V virtualization technology, which is natively
integrated in the Windows server technology at the base of Azure. Storage services Compute
resources are equipped with local storage in the form of a directory on the
local file system that can be used to temporarily store information that is
useful for the current execution cycle of a role. If the role is restarted
and activated on a different physical machine, this information is lost. Windows
Azure provides different types of storage solutions that complement compute
services with a more durable and redundant option compared to local storage.
Compared to local storage, these services can be accessed by multiple clients
at the same time and from everywhere, thus becoming a general solution for
storage ·
Blobs Azure
allows storing large amount of data in the form of binary large objects
(BLOBs) by means of the blobs service. This service is optimal to store large
text or binary files. Two types of blobs are
available: -
Block blobs. Block
blobs are composed of blocks and are optimized for sequential access; therefore
they are appropriate for media streaming. Currently, blocks are of 4 MB, and
a single block blob can reach 200 GB in dimension. -
Page blobs. Page
blobs are made of pages that are identified by an offset from the beginning
of the blob. A page blob can be split into multiple pages or constituted of a
single page. This type of blob is optimized for random access and can be used
to host data different from streaming. Currently,
the maximum dimension of a page blob can be 1 TB. Azure drive: Page blobs can be used to store an entire file system in
the form of a single Virtual Hard
Drive (VHD) file. This can then be mounted as a
part of the NTFS file system by Azure compute resources, thus providing
persistent and durable storage. A page blob mounted as part of an NTFS tree
is called an Azure Drive. -----------------------------REFERENCE {book: M.K. Mastering of Cloud Computing, May 2013, Page
No. 341-346}
Hadoop ·
Hadoop is an open-source framework
that allows to store and process big data in a distributed environment across
clusters of computers using simple programming models. It is designed to
scale up from single servers to thousands of machines, each offering local
computation and storage. ·
Hadoop runs applications using
the MapReduce algorithm, where the data is processed in parallel on different
CPU nodes. In short, Hadoop framework is capabale enough to develop
applications capable of running on clusters of computers and they could perform
complete statistical analysis for huge amounts of data.
Figure 5.9: Hadoop Framework ·
Hadoop is an Apache open
source framework written in java that allows distributed processing of large
datasets across clusters of computers using simple programming models. A
Hadoop frame-worked application works in an environment that provides
distributed storage and computation across clusters of computers. Hadoop is
designed to scale up from single server to thousands of machines, each
offering local computation and storage. Hadoop Architecture Hadoop
framework includes following four modules:
These are Java libraries and utilities
required by other Hadoop modules. These libraries provide file system and OS
level abstractions and contains the necessary Java files and scripts required
to start Hadoop.
We can use following
diagram to depict these four components available in Hadoop framework. Figure
5.10: Hadoop Architecture MapReduce: Hadoop MapReduce
is a software framework for easily writing applications which process big
amounts of data in-parallel on large clusters (thousands of nodes) of
commodity hardware in a reliable, fault-tolerant manner. The term MapReduce actually refers to the following two
different tasks that Hadoop programs perform:
Typically both the input and the output are stored in a
file-system. The framework takes care of scheduling tasks, monitoring them
and re-executes the failed tasks. The MapReduce framework consists of a single master JobTracker
and one slave TaskTracker per cluster-node. The master is responsible
for resource management, tracking resource consumption/availability and
scheduling the jobs component tasks on the slaves, monitoring them and
re-executing the failed tasks. The slaves TaskTracker execute the tasks as
directed by the master and provide task-status information to the master
periodically. The JobTracker is a single point of failure for the Hadoop
MapReduce service which means if JobTracker goes down, all running jobs are
halted. Hadoop Distributed File
System: Hadoop can work directly with any mountable
distributed file system such as Local FS, HFTP FS, S3 FS, and others, but the
most common file system used by Hadoop is the Hadoop Distributed File System
(HDFS). The Hadoop Distributed File System (HDFS) is based
on the Google File System (GFS) and provides a distributed file system that
is designed to run on large clusters (thousands of computers) of small
computer machines in a reliable, fault-tolerant manner. HDFS uses a master/slave architecture where master
consists of a single NameNode
that manages the file system metadata and one or more slave DataNodes that store the actual
data. A file in an HDFS namespace is split into several
blocks and those blocks are stored in a set of DataNodes. The NameNode
determines the mapping of blocks to the DataNodes. The DataNodes takes care
of read and write operation with the file system. They also take care of
block creation, deletion and replication based on instruction given by
NameNode. HDFS provides a shell like any other file system
and a list of commands are available to interact with the file system. These
shell commands will be covered in a separate chapter along with appropriate
examples. Advantages of Hadoop
-----------------------REFERENCE
{Internetlink:http://www.tutorialspoint.com/hadoop/hadoop_introduction.htm}
Amazon: Amazon Web Services
(AWS), a collection of remote
computing services, also called web services, make up a cloud-computing platform
offered by Amazon.com. These services operate from 11 geographical regions
across the world. The most central and well-known of these services arguably
include Amazon Elastic Compute Cloud and Amazon S3. Amazon markets these
products as a service to provide large computing-capacity more quickly and
more cheaply than a client company building an actual physical server farm. AWS offers comprehensive cloud IaaS services ranging from
virtual compute, storage, and networking to complete computing stacks. AWS is
mostly known for its compute and storage-on- demand services, namely Elastic
Compute Cloud (EC2) and Simple Storage Service (S3). EC2 provides users with customizable virtual hardware that
can be used as the base infrastructure for deploying computing systems on the
cloud. It is possible to choose from a large variety of virtual
hardware configurations, including GPU and cluster instances. EC2 instances
are deployed either by using the AWS console, which is a comprehensive Web
portal for accessing AWS services, or by using the Web services API available
for several programming languages. EC2 also provides the capability to save a specific running
instance as an image, thus allowing users to create their own templates for
deploying systems. These templates are stored into S3 that delivers
persistent storage on demand. S3 is organized into buckets; these are
containers of objects that are stored in binary form and can be enriched with
attributes. Users can store objects of any size, from simple files to entire
disk images, and have them accessible from everywhere. Besides EC2 and S3, a wide range of services can be
leveraged to build virtual computing sys- tems. Including networking support,
caching systems, DNS, database (relational and not) support, and others. Amazon.com initiated the evaluation of Amazon S3 for
economic and performance improvements related to data backup. As part of that
evaluation, they considered security, availability, and performance aspects
of Amazon S3 backups. Amazon.com also executed a cost-benefit analysis to
ensure that a migration to Amazon S3 would be financially worthwhile. That
cost benefit analysis included the following elements:
With the migration to Amazon S3 well along the way to
completion, Amazon.com has realized several benefits, including:
As the world’s largest online retailer, Amazon.com
continuously innovates in order to provide improved customer experience and
offer products at the lowest possible prices. One such innovation has been to
replace tape with Amazon S3 storage for database backups. This innovation is
one that can be easily replicated by other organizations that back up their
Oracle databases to tape. --------------------REFERENCE {Internet link: https://aws.amazon.com/solutions/case-studies/amazon/} Aneka: A Cloud Application
Platform: ·
Aneka is a market-oriented
cloud development and management platform with rapid application development
and workload distribution capabilities. Aneka is an integrated middleware
package which allows you to seamlessly build and manage an interconnected
network in addition to accelerating development, deployment and management of
distributed applications using Microsoft .NET frameworks on these networks.
It is market-oriented since it allows you to build, schedule, provision and
monitor results using pricing, accounting, QoS/SLA services in private and/or
public (leased) network environments. ·
Aneka is an Application
Platform-as-a-Service (Aneka PaaS) for Cloud Computing. It acts as a
framework for building customized applications and deploying them on either
public or private Clouds. One of the key features of Aneka is its support for
provisioning resources on different public Cloud providers such as Amazon
EC2, Windows Azure and GoGrid. ·
Aneka is a .NET-based
application development Platform-as–a-Service (PaaS), which offers a runtime
environment and a set of APIs that enable developers to build customized
applications by using multiple programming models such as Task Programming,
Thread Programming and MapReduce Programming, which can
leverage the compute resources on either public or private Clouds. ·
Moreover, Aneka provides a
number of services that allow users to control, auto-scale, reserve, monitor
and bill users for the resources used by their applications. One of key
characteristics of Aneka PaaS is to support provisioning of resources on
public Clouds such as Windows Azure, Amazon EC2, and GoGrid, while also
harnessing private Cloud resources ranging from desktops and clusters, to
virtual datacentres when needed to boost the performance of applications, as
shown in Figure 5.11. Aneka has successfully been used in several
industry segments and application scenarios to meet their rapidly growing
computing demands. Overview of Aneka Cloud
Application Development Platform Figure 5.12 shows the basic architecture of Aneka. The
system includes four key components, including Aneka Master, Aneka Worker,
Aneka Management Console, and Aneka Client Libraries
Figure
5.11: Aneka Cloud Application Development Platform. -
The Aneka Master and Aneka
Worker are both Aneka Containers which represents the basic deployment unit
of Aneka based Clouds. Aneka Containers host different 4 kinds of services
depending on their role. For instance, in addition to mandatory services, the
Master runs the Scheduling, Accounting, Reporting, Reservation, Provisioning,
and Storage services, while the Workers run execution services. -
For scalability reasons, some of these
services can be hosted on separate Containers with different roles. For
example, it is ideal to deploy a Storage Container for hosting the Storage
service, which is responsible for managing the storage and transfer of files
within the Aneka Cloud. -
The Master Container is
responsible for managing the entire Aneka Cloud, coordinating the execution
of applications by dispatching the collection of work units to the compute
nodes, whilst the Worker Container is in charge of executing the work units,
monitoring the execution, and collecting and forwarding the results. Figure
5.12: Basic Architecture of Aneka. The Management Studio and client libraries help in managing
the Aneka Cloud and developing applications that utilize resources on Aneka
Cloud. The Management Studio is an administrative console that is used to
configure Aneka Clouds; install, start or stop Containers; setup user
accounts and permissions for accessing Cloud resources; and access monitoring
and billing information. The Aneka client libraries, are Application
Programming Interfaces (APIs) used to develop applications which can be
executed on the Aneka Cloud. Three different kinds of Cloud programming
models are available for the Aneka PaaS to cover different application
scenarios:: Task Programming, Thread Programming and MapReduce
Programming These models represent common abstractions in distributed and
parallel computing and provide developers with familiar abstractions to
design and implement applications. --------------------REFERENCE {Internet link: http://gridbus.cs.mu.oz.au/papers/Aneka-AzurePlatform.pdf}
|
