COMPUTER
NETWORK |
|||||||||||||||||||||||||||||||||||||||||||
|
UNIT-I |
|||||||||||||||||||||||||||||||||||||||||||
|
Lecture-1 |
|||||||||||||||||||||||||||||||||||||||||||
|
Computer Network: Definitions [RGPV June
2013] A computer network or data
network is a telecommunications network which allows computers
to exchange data. In computer networks, networked
computing devices pass data to each other along data connections (network links).
Data is transferred in the form of packets. The connections between nodes are
established using either cable media or wireless media.
The best-known computer network is the Internet. Network computer devices that originate, route and terminate the data are
called network nodes. Nodes can include hosts
such as personal computers, phones, servers as well as networking hardware. Two such devices are
said to be networked together when one device is able to exchange information
with the other device, whether or not they have a direct connection to each
other. Computer networks differ in the transmission media used to carry their
signals, the communications protocols to organize
network traffic, the network's size, topology
and organizational intent. In most cases, communications protocols are layered on (i.e. work using) other more
specific or more general communications protocols, except for the physical
layer that directly deals with the transmission media. Computer
Network: goals
Computer Network: components [RGPV June
2012] Computer networks share common devices, functions, and features including servers, clients, transmission media, shared data, shared printers and other hardware and software resources, network interface card(NIC), local operating system(LOS), and the network operating system (NOS). Servers - Servers are computers that hold shared files, programs, and the network operating system. Servers provide access to network resources to all the users of the network. There are many different kinds of servers, and one server can provide several functions. For example, there are file servers, print servers, mail servers, communication servers, database servers, print servers, fax servers and web servers, to name a few. Clients - Clients are computers that access and use the network and shared network resources. Client computers are basically the customers(users) of the network, as they request and receive services from the servers. Transmission Media - Transmission media are the facilities used to interconnect computers in a network, such as twisted-pair wire, coaxial cable, and optical fiber cable. Transmission media are sometimes called channels, links or lines. Shared data - Shared data are data that file servers provide to clients such as data files, printer access programs and e-mail. Shared printers and other peripherals - Shared printers and peripherals are hardware resources provided to the users of the network by servers. Resources provided include data files, printers, software, or any other items used by clients on the network. Network Interface Card - Each computer in a network has a special expansion card called a network interface card (NIC). The NIC prepares(formats) and sends data, receives data, and controls data flow between the computer and the network. On the transmit side, the NIC passes frames of data on to the physical layer, which transmits the data to the physical link. On the receiver's side, the NIC processes bits received from the physical layer and processes the message based on its contents. Local Operating System - A local operating system allows personal computers to access files, print to a local printer, and have and use one or more disk and CD drives that are located on the computer. Examples are MS-DOS, Unix, Linux, Windows 2000, Windows 98, Windows XP etc. Network Operating System - The network operating system is a program that runs on computers and servers, and allows the computers to communicate over the network. Hub - Hub is a device that splits a network connection into multiple computers. It is like a distribution center. When a computer request information from a network or a specific computer, it sends the request to the hub through a cable. The hub will receive the request and transmit it to the entire network. Each computer in the network should then figure out whether the broadcast data is for them or not. Switch - Switch is a telecommunication device grouped as one of computer network components. Switch is like a Hub but built in with advanced features. It uses physical device addresses in each incoming messages so that it can deliver the message to the right destination or port. Like a hub, switch doesn't broadcast the received message to entire network, rather before sending it checks to which system or port should the message be sent. In other words, switch connects the source and destination directly which increases the speed of the network. Both switch and hub have common features: Multiple RJ-45 ports, power supply and connection lights. |
|||||||||||||||||||||||||||||||||||||||||||
|
Lecture-2 |
|||||||||||||||||||||||||||||||||||||||||||
|
Computer Network :Architecture, Network architecture is
the design of a communications network. It is a framework for
the specification of a network's physical
components and their functional organization and configuration,
its operational principles and procedures, as well as data formats
used in its operation. In telecommunication, the specification of a
network architecture may also include a detailed description of products and
services delivered via a communications network, as well as detailed rate and
billing structures under which services are compensated. The network architecture of the Internet
is predominantly expressed by its use of the Internet Protocol Suite, rather than a
specific model for interconnecting networks or nodes in the network, or the

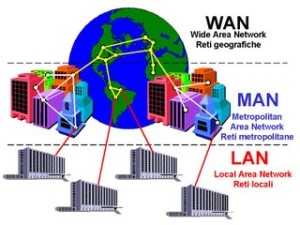

usage of specific types of hardware links. Computer Network: Classifications & Types. There are three types of network classification
1) LAN ( Local area network) 2) MAN (Metropolitan Area network) 3) WAN ( Wide area network)
1) Local area network (LAN)
LAN is a group of the computers
placed in the same room, same floor, or the same building so they are
connected with each other to form a single network to share their resources
such as disk drives, data, CPU, modem etc. LAN are
limited to some geographical area less than 2 km. Most of LAN is used widely
is an Ethernet system of the bus topology. Characteristics of LAN LAN connects the computer in a single building,
block and they are working in any limited area. Media access control methods in a LAN, the bus based ehternet, token ring. This is private networks, not for subject to tariffs or regulatory
controls. LAN is a wireless there is an additional in some countries.
2) Metropolitan Area network (MAN) The metropolitan area network is a large computer network that expands a
Metropolitan area or campus. Its geographic area
between a WAN and LAN.its expand round 50km devices used are modem and
wire/cable.
Characteristics of MAN 1) Its covers the towns and cities(50km) 2) It is developed in 1980s. 3) MAN is used by the communication medium for optical fiber cables, it also used for other media. 3) Wide
area Network (WAN)
The wide area network is a network which connects the countries,
cities or the continents, it is a public communications links. The most
popular example of a WAN is the internet. WAN is used
to connect LAN so the users and the computer in the one location can
communicatewith each other.
Characteristics of WAN 1) Its covers the large distances. 2) Communication medium used are
satellite, telephones which are connected by the routers. |
|||||||||||||||||||||||||||||||||||||||||||
|
Lecture-3 |
|||||||||||||||||||||||||||||||||||||||||||
|

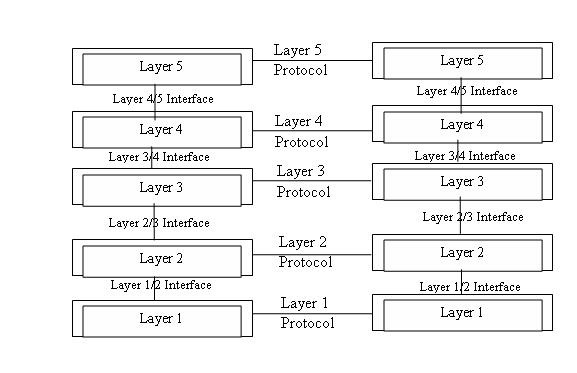

Layered
Architecture: Protocol hierarchy, Design Issues , Interfaces and Services [RGPV June 2013] , [RGPV
June 2012] To tackle with the design complexity most of the
networks are organize as a set of layers or levels. The fundamental idea of
layered architecture is to divide the divide the design into small pieces.
The layering provides modularity to the network design. The main duty of each
layer is to provide offer services to higher layers, and provide
abstraction. The main benefits of layered architecture are modularity
and clear interfaces.The basic elements of a layered model are services, protocols and Interfaces. A service is a set of
functions that a layer offers to another layer (usually to upper layer)We
know that protocol is a set of rules. Here the protocols are used to exchange
information with a peer layer. Peers means layers at same level. The protocol
consist several rules that deals with the content and the order or structure
of the messages exchanged. All the data from one layer to another
either upper or lower layer pass through the corresponding interfaces.
Suppose we have an n layered network then, layer-n of one machine take
conversation with layer-n on another machine. Here layer-n protocol define
the rules and orders.
Why layered
architecture is preferred in computer network design?
Layered architectures
have several advantages. Some of them are,
The benefits to
layering networking protocol specifications are many including: Interoperability
- Layering promotes greater interoperability between devices from different
manufacturers and even between different generations of the same type of
device from the same manufacturer. Greater Compatibility - One of the
greatest of all of the benefits of using a hierarchal or layered approach to
networking and communications protocols is the greater compatibility between
devices, systems and networks that this delivers. Better Flexibility -
Layering and the greater compatibility that it delivers goes a long way to
improving the flexibility; particularly in terms of options and choices, that
network engineers and administrators alike crave so much. Flexibility and
Peace of Mind - Peace of mind in knowing that if worst comes to worst and
a key core network device; suddenly and without prior warning decides to give
up the ghost, you can rest assured that a replacement or temporary stand-by
can be readily put to work with the highest degree of confidence that it will
do the job. Even though it may not be up to doing the job at the same speed
it will still do it; at least, until a better, more permanent solution can be
implemented. This is a state of affairs that is much more acceptable than for
a lengthy cessation of network services or assets unavailability to occur.
80% is oh so much more pleasing than 0%. Increased Life Expectancy -
Increased product working life expectancies as backwards compatibility is
made considerably easier. Devices from different technology generations can
co-exist thus the older units do not get discarded immediately newer
technologies are adopted. Scalability - Experience has shown that a
layered or hierarchal approach to networking protocol design and
implementation scales better than the horizontal approach. Mobility -
Greater mobility is more readily delivered whenever we adopt the layered and
segmented strategies into our architectural design Value Added Features
- It is far easier to incorporate and implement value added features into
products or services when the entire system has been built on the use of a
layered philosophy. Cost Effective Quality - The layered approach has
proven time and time again to be the most economical way of developing and
implementing any system(s) be they small, simple, large or complex makes no
difference. This ease of development and implementation translates to greater
efficiency and effectiveness which in turn translates into greater economic
rationalization and cheaper products while not compromising quality. Modularity
- I am sure that you have come across plug-ins and add-ons. These are common
and classical examples of the benefits to be derived from the use of a
hierarchal (layered) approach to design. Innate Plasticity - Layering
allows for innate plasticity to be built into devices at all levels and
stages from the get-go, to implementation, on through optimization and
upgrade cycles throughout a component's entire useful working lifecycle
thereafter. The Graduated, Blended Approach to Migration -
Compatibility enables technologies to co-exist side-by-side which results in
quicker uptake of newer technologies as the older asset investments can still
continue to be productive. Thus migration to newer technologies and standards
can be undertaken in stages or phases over a period of time. This is what is
known as the graduated blended approach; which is the opposite of the sudden
adoption approach. Standardization and Certification - The layered
approach to networking protocol specifications facilitates a more streamlined
and simplified standardization and certification process; particularly from
an "industry" point of view. This is due to the clearer and more
distinct definition and demarcation of what functions occur at each layer
when the layered approach is taken. Task Segmentation - Breaking a
large complex system into smaller more manageable subcomponents allows for
easier development and implementation of new technologies; as well as
facilitating human comprehension of what may be very diverse and complex
systems. Portability - Layered networking protocols are much easier to
port from one system or architecture to another. Compartmentalization of
Functionality - The compartmentalization or layering of processes,
procedures and communications functions gives developers the freedom to
concentrate on a specific layer or specific functions within that layer's
realm of responsibility without the need for great concern or modification of
any other layer. Changes within one layer can be considered to be in
self-contained isolation; functionally speaking, from the other layers.
Modifications at one layer will not break or compound the other layers. Side-Kicks
- The development of "Helper" protocols or side-kicks is much
easier when a layered approach to networking protocols is embraced. This is
especially so when it comes to the development of "helper"
protocols that are developed more or less as after-thoughts because the need
arose. Reduced Debugging Time - The time spent debugging can be
greatly reduced as a direct result of taking the layered approach to
developing network protocols because debugging is made easier and faster when
using the layered approach as opposed to not using it. Promotion of
Multi-Vendor Development - Layering allows for a more precise
identification and delineation of task, process and methodology. This permits
a clearer definition of what needs to be done, where it needs to be done,
when it needs to be done, how it needs to be done and what or who will do it.
It is these factors that promote multi-vendor development through the
standardization of networking components at both the hardware and software
levels because of the clear and precise delineation of responsibilities that
layering brings to the developers' table. Easier Binding Implementation
- The principle of binding is far easier to implement in layered, tiered, and
hierarchal systems. Humans also tend to understand this form easier than the
flat model. Enhanced Troubleshooting and Fault Identification -
Troubleshooting and fault identification are made considerably easier thus
resolution times are greatly reduced. Layering allows for examination in
isolation of subcomponents as well as the whole. Enhanced Communications
Flow and Support - Adopting the layered approach allows for improved flow
and support for communication between diverse systems, networks, hardware,
software, and protocols. Support for Disparate Hosts - Communications
between disparate hosts is supported more or less seamlessly thus Unix, PC,
MAC & Linux to name but a few can freely interchange data. Reduction
of the Domino Effect - Another very important advantage of a layered
protocol system is that it helps to prevent changes in one layer from
affecting other layers. This helps to expedite technology development. Rapid
Application Development (RAD) - Work loads can be evenly distributed
which means that multiple activities can be conducted in parallel thereby
reducing the time taken to develop, debug, optimize and package new
technologies ready for production implementation. |
|||||||||||||||||||||||||||||||||||||||||||
|
Lecture-4 |
|||||||||||||||||||||||||||||||||||||||||||
|

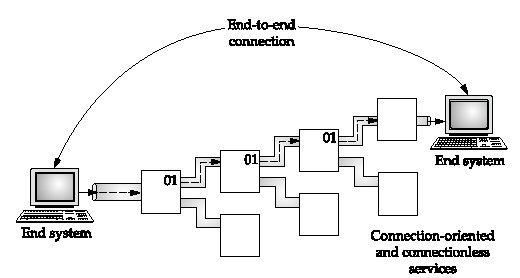

Connection
Oriented & Connectionless Services, Service primitives, Design issues
& its functionality [RGPV June 2014], [RGPV June
2012] Connection-oriented (CO-mode[) communication is a network
communication mode in telecommunications and computer networking,
where a communication session or a semi-permanent
connection is established before any useful data can be transferred, and
where a stream of data is delivered in the same order as it was sent. The
alternative to connection-oriented transmission is connectionless communication, for
example the datagram
mode communication used by the IP and UDP protocols, where data may be
delivered out of order, since different packets are routed independently, and
may be delivered over different paths. Connection-oriented communication may be a circuit switched
connection, or a packet-mode virtual circuit
connection. In the latter case, it may use either a transport layer virtual circuit
protocol such as the TCP protocol, allowing data to be
delivered in order although the lower layer switching is connectionless, or
it may be a data link layer or network layer
switching mode, where all data packets belonging to the same traffic stream
are delivered over the same path, and traffic flows are identified by some connection
identifier rather than by complete routing information, allowing fast
hardware based switching. Connection-oriented protocol services are often but not always reliable network
services, that provide acknowledgment after successful delivery, and automatic repeat request functions in
case of missing data or detected bit-errors. ATM, Frame Relay and MPLS are
examples of a connection-oriented, unreliable protocol. A Connection-Oriented Protocol (COP) is a networking protocol used to
establish a data communication session in which endpoint devices use
preliminary protocols to establish end-to-end connections and then the
subsequent data stream is delivered in sequential transfer mode. Two distinct techniques are used in data communications to transfer
data. Each has its own advantages and disadvantages. They are the
connection-oriented method and the connectionless method:
Connection-oriented methods may be implemented in the data link layers
of the protocol stack and/or in the transport layers of the protocol stack,
depending on the physical connections in place and the services required by
the systems that are communicating. TCP (Transmission Control Protocol) is a
connection-oriented transport protocol, while UDP (User Datagram Protocol) is
a connectionless network protocol. Both operate over IP.The physical, data
link, and network layer protocols have been used to implement guaranteed data
delivery. For example, X.25 packet-switching networks perform extensive error
checking and packet acknowledgment because the services were originally
implemented on poor-quality telephone connections. Today, networks are more
reliable. It is generally believed that the underlying network should do what
it does best, which is deliver data bits as quickly as possible. Therefore,
connection-oriented services are now primarily handled in the transport layer
by end systems, not the network. This allows lower-layer networks to be
optimized for speed. LANs operate as connectionless systems. A computer attached to a
network can start transmitting frames as soon as it has access to the
network. It does not need to set up a connection with the destination system
ahead of time. However, a transport-level protocol such as TCP may set up a
connection-oriented session when necessary. The
Internet is one big connectionless packet network in which all packet
deliveries are handled by IP. However, TCP adds connection-oriented services
on top of IP. TCP provides all the upper-level connection-oriented session
requirements to ensure that data is delivered properly. MPLS is a relatively
new connection-oriented networking scheme for IP networks that sets up fast
label-switched paths across routed or layer 2 networks.A WAN service that
uses the connection-oriented model is frame relay. |
|||||||||||||||||||||||||||||||||||||||||||
|
Lecture-5 |
|||||||||||||||||||||||||||||||||||||||||||
|
ISO-OSI
Reference Model: Principle, Model, Descriptions of various layers [RGPV June
2014] The Open Systems Interconnection model (OSI) is a conceptual model that characterizes and standardizes the internal functions of a communication system by partitioning it into abstraction layers. The model is a product of the Open Systems Interconnection project at the International Organization for Standardization (ISO), maintained by the identification ISO/IEC 7498-1.The model groups communication functions into seven logical layers. A layer serves the layer above it and is served by the layer below it. For example, a layer that provides error-free communications across a network provides the path needed by applications above it, while it calls the next lower layer to send and receive packets that make up the contents of that path. Two instances at one layer are connected by a horizontal connection on that layer.The recommendation X.200 describes seven layers, labeled 1 to 7. Layer 1 is the lowest layer in this model.
At each level N two entities at the communicating devices (layer N peers)
ex Layer 1: physical layer
The physical layer has the following major
functions:
The physical layer of Parallel SCSI operates in this layer, as do
the physical layers of Ethernet and other local-area networks, such as Token Ring,
FDDI, ITU-T G.hn, and IEEE 802.11
(Wi-Fi), as well as personal area networks such as Bluetooth
and IEEE 802.15.4. Layer 2: data link layer
The data link layer provides node-to-node data transfer -- a reliable link between
two directly connected nodes, by detecting and possibly correcting errors
that may occur in the physical layer. The data link layer is divided into two
sublayers:
The Point-to-Point Protocol (PPP) is an example of a data link layer in the TCP/IP protocol stack. The ITU-T
G.hn
standard, which provides high-speed local area networking over existing wires
(power lines, phone lines and coaxial cables), includes a complete data link layer
that provides both error correction and flow control by means of a selective-repeat
sliding-window protocol. Layer 3: network layer
The network layer provides the functional and procedural means of transferring variable length data sequences (called datagrams) from one node to another connected to the same network. It translates logical network address into physical machine address. A network is a medium to which many nodes can be connected, on which every node has an address and which permits nodes connected to it to transfer messages to other nodes connected to it by merely providing the content of a message and the address of the destination node and letting the network find the way to deliver ("route") the message to the destination node. In addition to message routing, the network may (or may not) implement message delivery by splitting the message into several fragments, delivering each fragment by a separate route and reassembling the fragments, report delivery errors, etc.Datagram delivery at the network layer is not guaranteed to be reliable. A number of layer-management protocols, a function defined in the management annex, ISO 7498/4, belong to the network layer. These include routing protocols, multicast group management, network-layer information and error, and network-layer address assignment. It is the function of the payload that makes these belong to the network layer, not the protocol that carries them. Layer 4: transport layer
The transport layer provides the functional and
procedural means of transferring variable-length data sequences from a source
to a destination host via one or more networks, while maintaining the quality
of service functions. An example of a transport-layer protocol in the standard Internet stack is
Transmission Control Protocol (TCP),
usually built on top of the Internet Protocol (IP). The transport layer controls the reliability of a given link through flow
control, segmentation/desegmentation, and error
control. Some protocols are state- and connection-oriented. This means that
the transport layer can keep track of the segments and retransmit those that
fail. The transport layer also provides the acknowledgement of the successful
data transmission and sends the next data if no errors occurred. The
transport layer creates packets out of the message received from the
application layer. Packetizing is a process of dividing the long message into
smaller messages. OSI defines five classes of connection-mode transport protocols ranging from class 0 (which is also known as TP0 and provides the fewest features) to class 4 (TP4, designed for less reliable networks, similar to the Internet). Class 0 contains no error recovery, and was designed for use on network layers that provide error-free connections. Class 4 is closest to TCP, although TCP contains functions, such as the graceful close, which OSI assigns to the session layer. Also, all OSI TP connection-mode protocol classes provide expedited data and preservation of record boundaries. An easy way to visualize the transport layer is to compare it with a post
office, which deals with the dispatch and classification of mail and parcels
sent. Do remember, however, that a post office manages the outer envelope of
mail. Higher layers may have the equivalent of double envelopes, such as
cryptographic presentation services that can be read by the addressee only.
Roughly speaking, tunneling protocols operate at the transport
layer, such as carrying non-IP protocols such as IBM's SNA or Novell's
IPX over an IP network, or end-to-end
encryption with IPsec.
While Generic Routing Encapsulation (GRE)
might seem to be a network-layer protocol, if the encapsulation of the
payload takes place only at endpoint, GRE becomes closer to a transport
protocol that uses IP headers but contains complete frames or packets to
deliver to an endpoint. L2TP carries PPP frames inside transport packet. Although not developed under the OSI Reference Model and not strictly
conforming to the OSI definition of the transport layer, the Transmission Control Protocol (TCP) and
the User Datagram Protocol (UDP) of the Internet
Protocol Suite are commonly categorized as layer-4 protocols within OSI. Layer 5: session layer
The session layer controls the dialogues
(connections) between computers. It establishes, manages and terminates the
connections between the local and remote application. It provides for full-duplex, half-duplex,
or simplex operation, and establishes
checkpointing, adjournment, termination, and restart procedures. The OSI
model made this layer responsible for graceful close of sessions, which is a
property of the Transmission Control Protocol, and also
for session checkpointing and recovery, which is not usually used in the
Internet Protocol Suite. The session layer is commonly implemented explicitly
in application environments that use remote procedure calls. Layer 6: presentation layer
The presentation layer establishes context
between application-layer entities, in which the application-layer entities
may use different syntax and semantics if the presentation service provides a
big mapping between them. If a mapping is available, presentation service
data units are encapsulated into session protocol data units, and passed down
the protocol stack. This layer provides independence from data representation (e.g., encryption)
by translating between application and network formats. The presentation
layer transforms data into the form that the application accepts. This layer
formats and encrypts data to be sent across a network. It is sometimes called
the syntax layer. The original presentation structure used the Basic Encoding Rules of Abstract Syntax Notation One (ASN.1),
with capabilities such as converting an EBCDIC-coded
text file to an ASCII-coded file,
or serialization
of objects and other data structures
from and to XML. Layer 7: application layer
The application layer is the OSI layer closest to
the end user, which means both the OSI application layer and the user
interact directly with the software application. This layer interacts with
software applications that implement a communicating component. Such application programs fall outside the scope
of the OSI model. Application-layer functions typically include identifying
communication partners, determining resource availability, and synchronizing
communication. When identifying communication partners, the application layer
determines the identity and availability of communication partners for an
application with data to transmit. When determining resource availability,
the application layer must decide whether sufficient network or the requested
communication exists. In synchronizing communication, all communication
between applications requires cooperation that is managed by the application
layer. Some examples of application-layer implementations include:
|
|||||||||||||||||||||||||||||||||||||||||||
|
Lecture-6 |
|||||||||||||||||||||||||||||||||||||||||||
|
TCP/IP [RGPV June
2014], [RGPV June 2013] The TCP/IP reference model is the
network model used in the current Internet architecture. It is considered as
the grandfather of the Internet the ARPANET. The reference model was named
after two of its main protocols, TCP (Transmission control Protocol) and
IP(Internet Protocol). There are versions of this model with four layers
and with five layers. The original four-layer version of the model is shown
below.
Layer 4: Process Layer or Application Layer: This is
where the “higher level” protocols such as FTP, HTTP, etc. operate. The
original TCP/IP specification described a number of different applications
that fit into the top layer of the protocol stack. These applications include
Telnet, FTP, SMTP and DNS. Layer 3: Host-To-Host (Transport) Layer: This is where
flow-control and connection protocols exist,, such as TCP. This layer deals
with opening and maintaining connection, ensuring that packet are in fact
received the transport layer is the interface between the application layer
and the complex hardware of the. Two modes are available, full-duplex and
half duplex. In full-duplex operation, both sides can transmit and receive
data simultaneously, whereas in half duplex, a side can only send or receive
at one time. Layer 2: Internet or Internetworking Layer: This layer
defines IP addresses, with many routing schemes for navigating packets from
one IP address to another. The job of the network layer is to inject packets
into any network and have them travel independently to the destination.
Packet routing is a major job of this protocol. Layer 1: Networking
Access Layer: This layer describes the physical equipment necessary for
communications, such as twisted pair cables, the signalling used on that
equipment, and the low-level protocols using that signalling. That
Host-to-Network layer interfaces the TCP/IP protocol stack to the physical

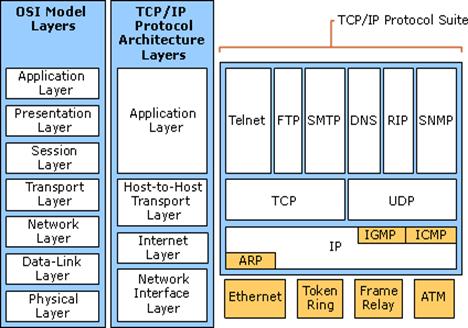

network. TCP/IP
Protocol Suite:
The TCP/IP protocol suite has two sets of protocols at the Internet layer: · IPv4, also known as IP, is the Internet layer in common use today on private intranets and the Internet. · IPv6 is the new Internet layer that will eventually replace the existing IPv4 Internet layer. |
|||||||||||||||||||||||||||||||||||||||||||
|
Lecture-7 |
|||||||||||||||||||||||||||||||||||||||||||
|
Queueing Models: Little's Theorem, Queueing
System -1 [RGPV June
2014] Queueing theory is the mathematical study of waiting lines, or queues. In queueing
theory a model is constructed so that queue lengths and waiting times can be
predicted. Queueing theory is generally considered a branch of operations research because the results are
often used when making business decisions about the resources needed to
provide a service. Queueing theory has its origins in research by Agner Krarup Erlang when he created models to
describe the Single queueing nodes
Single queueing nodes are usually described using Kendall's notation in the form A/S/C
where A describes the time between arrivals to the queue, S the
size of jobs and C the number of servers at the node. Many theorems in
queue theory can be proved by reducing queues to mathematical systems known
as Markov chains,
first described by Andrey Markov in his 1906 paper. Agner Krarup Erlang, a Danish
engineer who worked for the Copenhagen Telephone Exchange, published the
first paper on what would now be called queueing theory in 1909. He modeled
the number of telephone calls arriving at an exchange by a Poisson process
and solved the M/D/1 queue in 1917 and M/D/k queueing
model in 1920. In
The M/M/1 queue
is a simple model where a single server serves jobs that arrive according to
a Poisson process and have exponentially distributed service requirements.
In an M/G/1 queue
the G stands for general and indicates an arbitrary probability distribution. The M/G/1
model was solved by Felix Pollaczek in 1930, a solution later
recast in probabilistic terms by Aleksandr Khinchin and now known as the Pollaczek–Khinchine formula. After World War II queueing theory became an area
of research interest to mathematicians. Work on queueing theory used in
modern packet switching networks was performed in
the early 1960s by Leonard Kleinrock. It was in this period that
John Little gave a proof of the formula which
now bears his name: Little's law.
In 1961 John Kingman gave a formula for the mean waiting time in a G/G/1 queue:
Kingman's formula The matrix geometric method and matrix analytic methods have allowed queues
with phase-type distributed interarrival and
service time distributions to be considered Problems such as performance metrics for the M/G/k queue
remain an open problem Queueing networks
Networks of queues are systems in which a number of queues are connected
by customer routing. When a customer is serviced at one node it can join
another node and queue for service, or leave the network. For a network of m
the state of the system can be described by an m–dimensional vector (x1,x2,...,xm)
where xi represents the number of customers at each node.
The first significant results in this area were Jackson networks,[20][21]
for which an efficient product-form stationary
distribution exists and the mean value analysiswhich allows average
metrics such as throughput and sojourn times to be computed. If the total number of customers in the network remains constant the
network is called a closed network and has also been shown to have a
product–form stationary distribution in the Gordon–Newell theorem.[24]
This result was extended to the BCMP networkwhere
a network with very general service time, regimes and customer routing is
shown to also exhibit a product-form stationary distribution. Networks of customers have also been investigated, Kelly networks
where customers of different classes experience different priority levels at
different service nodes. Another type of network are G-networks
first proposed by Erol Gelenbe in 1993:these networks do not
assume exponential time distributions like the classic Jackson Network Example of M/M/1 Birth and
Death process
A:distribution
of arrival time B:distribution
of service time C:the
number of parallel servers |
|||||||||||||||||||||||||||||||||||||||||||
|
Lecture-8 |
|||||||||||||||||||||||||||||||||||||||||||
|
Queueing Models: Little's
Theorem, Queueing System -2 We have seen that as a system gets congested, the service delay in the system increases. A good understanding of the relationship between congestion and delay is essential for designing effective congestion control algorithms. Queuing Theory provides all the tools needed for this analysis. This article will focus on understanding the basics of this topic. Communication
Delays
Before we proceed further, lets understand the different components of delay in a messaging system. The total delay experienced by messages can be classified into the following categories:
In this article we will be dealing primarily with queueing delay. Little's
Theorem
We begin our analysis of queueing systems by understanding Little's Theorem. Little's theorem states that: The average number of customers (N) can be determined from the following equation: N = λT Here lambda is the average customer arrival rate and T is the average service time for a customer. Proof of this theorem can be obtained from any standard textbook on queueing theory. Here we will focus on an intuitive understanding of the result. Consider the example of a restaurant where the customer arrival rate (lambda) doubles but the customers still spend the same amount of time in the restaurant (T). This will double the number of customers in the restaurant (N). By the same logic if the customer arrival rate remains the same but the customers service time doubles, this will also double the total number of customers in the restaurant. Queueing System
Classification
With Little's Theorem, we have developed some basic understanding of a queueing system. To further our understanding we will have to dig deeper into characteristics of a queueing system that impact its performance. For example, queueing requirements of a restaurant will depend upon factors like:
The above three points correspond to the most important characteristics of a queueing system. They are explained below:
Based on the above characteristics, queueing systems can be classified by the following convention: A/S/n Where A is the arrival process, S is the service process and n is the number of servers. A and S are can be any of the following:
Examples of queueing systems that can be defined with this convention are:
|
|||||||||||||||||||||||||||||||||||||||||||
|
Lecture-9 Queueing Models: Little's Theorem, Queueing
System -3
M/M/c queue
In queueing theory,
a discipline within the mathematical theory of probability, the M/M/c queue (or Erlang–C modelis a multi-server queueing model.
In Kendall's notation it describes a system
where arrivals form a single queue and are governed by a Poisson process,
there are c servers and job service times are exponentially
distributed. It is a generalisation of the M/M/1 queue
which considers only a single server. The model with infinitely many servers
is the M/M/∞ queue. M/M/1 queue
In queueing theory,
a discipline within the mathematical theory of probability, an M/M/1
queue represents the queue length in a system
having a single server, where arrivals are determined by a Poisson process
and job service times have an exponential distribution. The model name
is written in Kendall's notation. The model is the most
elementary of queueing models and an attractive object of study as closed-form expressions can be obtained for
many metrics of interest in this model. An extension of this model with more
than one server is the M/M/c queue.
M/M/∞ In queueing theory, a discipline within the
mathematical theory of probability, the M/M/∞
queue is a multi-server queueing model
where every arrival experiences immediate service and does not wait In Kendall's notation it describes a system
where arrivals are governed by a Poisson process,
there are infinitely many servers, so jobs do not need to wait for a server.
Each job has an exponentially distributed service time. It is a limit of the M/M/c queue
model where the number of servers c becomes very large.The model can
be used to model bound lazy deletion performance. M/G/1 In queueing theory, a discipline within the
mathematical theory of probability, an M/G/1 queue
is a queue model where arrivals are Markovian (modulated by a Poisson process),
service times have a General distribution and there is a single
server.[1]
The model name is written in Kendall's notation, and is an extension of
the M/M/1 queue,
where service times must be exponentially distributed. The classic application
of the M/G/1 queue is to model performance of a fixed head hard disk. Model definition
A queue represented by a M/G/1 queue is a stochastic process whose state space
is the set {0,1,2,3...}, where the value corresponds to the number of
customers in the queue, including any being served. Transitions from state i
to i + 1 represent the arrival of a new customer: the times
between such arrivals have an exponential distribution with parameter
λ. Transitions from state i to i − 1
represent a customer who has been served, finishing being served and
departing: the length of time required for serving an individual customer has
a general distribution function. The lengths of times between arrivals and of
service periods are random variables which are assumed to be statistically independent. Scheduling policies
Customers are typically served on a first-come, first-served basis, other
popular scheduling policies include
Service policies are often evaluated by comparing mean sojourn times in
the queue. If service times that jobs require are known on arrival then the
optimal scheduling policy is SRPT.Policies can also be evaluated using a
measure of fairness |
|||||||||||||||||||||||||||||||||||||||||||
|
|
|||||||||||||||||||||||||||||||||||||||||||
|
RGPV PAPER
QUESTIONS |
|||||||||||||||||||||||||||||||||||||||||||
|
S.NO |
Questions |
Year |
Marks |
|
||||||||||||||||||||||||||||||||||||||
|
1. |
What are uses of Computer Network now days? |
Jun 2016 |
2 |
|
||||||||||||||||||||||||||||||||||||||
|
2. |
What is difference between TCP and UDP? |
Jun 2016 |
2 |
|
||||||||||||||||||||||||||||||||||||||
|
3. |
What is principle difference between connections
less and connection oriented communication? |
Jun 2016, Jun 2015 |
3, 2 |
|
||||||||||||||||||||||||||||||||||||||
|
4. |
Explain the layered architecture of OSI model. List
two ways in which OSI and TCP/IP model are same. |
Jun 2016 |
7 |
|
||||||||||||||||||||||||||||||||||||||
|
5. |
What are the types of queuing system are used for
computer network? Explain. |
Jun 2016 |
7 |
|
||||||||||||||||||||||||||||||||||||||
|
6. |
What is multicasting? |
Jun 2015 |
2 |
|
||||||||||||||||||||||||||||||||||||||
|
7. |
What is Little`s formula? Prove it. |
Jun 2015 |
3 |
|
||||||||||||||||||||||||||||||||||||||
|
8. |
During the communication, how various layers of OSI
model exchange information to establish a connection? Describe with the help of suitable diagram.
|
Jun 2015 |
7 |
|
||||||||||||||||||||||||||||||||||||||
|
9. |
Discuss Markov chain model and explain M/G/1 queues. |
Jun 2015 |
7 |
|
||||||||||||||||||||||||||||||||||||||
|
10. |
Explain in detail TCP/IP model? |
June2014 |
7 |
|
||||||||||||||||||||||||||||||||||||||
|
11. |
What are the components of Computer Network? |
June 2012 |
10 |
|
||||||||||||||||||||||||||||||||||||||
|
12. |
Describe design issues of layers? |
June2013 |
10 |
|
||||||||||||||||||||||||||||||||||||||
|
13. |
Explain Connection
Oriented & Connectionless Services |
June 2012 |
6 |
|
||||||||||||||||||||||||||||||||||||||
