LINK LAYER: INTRODUCTION [RGPV
June 2014] Data Link Layer is second layer of OSI Layered
Model. This layer is one of the most complicated layers and has complex
functionalities and liabilities. Data link layer hides the details of
underlying hardware and represents itself to upper layer as the medium to communicate. Data link layer works between two hosts which are
directly connected in some sense. This direct connection could be point to
point or broadcast. Systems on broadcast network are said to be on same link.
The work of data link layer tends to get more
complex when it is dealing with multiple hosts on single collision domain. Data link layer is responsible for converting data
stream to signals bit by bit and to send that over the underlying hardware.
At the receiving end, Data link layer picks up data from hardware which are
in the form of electrical signals, assembles them in a recognizable frame format, and hands over to upper
layer.
Data link
layer has two sub-layers: ·
Logical Link Control: It
deals with protocols, flow-control, and error control ·
Media Access Control: It
deals with actual control of media DATA
LINK LAYER: SERVICES ·
Encapsulation of network layer data packets into frames ·
Logical link control (LLC) sublayer: ·
Error control (automatic repeat request,ARQ), in addition to ARQ provided by some transport-layer protocols, to forward error correction (FEC) techniques provided on thephysical layer, and to error-detection
and packet cancelling provided at all layers, including the network layer.
Data-link-layer error control (i.e. retransmission of erroneous packets) is
provided in wireless networks and V.42
telephone network modems, but not in LAN protocols such as Ethernet,
since bit errors are so uncommon in short wires. In that case, only error detection and canceling
of erroneous packets are provided. ·
Flow control, in addition to the one provided
on the transport layer.
Data-link-layer error control is not used in LAN protocols such as Ethernet,
but in modems and wireless networks. ·
Media access control (MAC) sublayer: ·
Multiple access protocols for channel-access control, for
example CSMA/CD protocols for collision detection and re-transmission in Ethernet bus networks and hub networks, or
the CSMA/CA protocol for collision avoidance in wireless networks. ·
Physical addressing (MAC addressing) ·
LAN switching (packet switching)
including MAC filtering and spanning tree protocol ·
Data packet queuing or scheduling ·
Store-and-forward switching or cut-through switching ·
Quality of Service (QoS) control ·
Virtual LANs (VLAN) DATA
LINK LAYER: FRAMING Since
the physical layer merely accepts and transmits a stream of bits without any
regard to meaning or structure, it is upto the data
link layer to create and recognize frame boundaries. This can be accomplished
by attaching special bit patterns to the beginning and end of the frame. If
these bit patterns can accidentally occur in data, special care must be taken
to make sure these
patterns are not incorrectly interpreted as frame delimiters. The four
framing methods that are widely used are
Character
Count
This
method uses a field in the header to specify the number of characters in the
frame. When the data link layer at the destination sees the character count,it knows how many
characters follow, and hence where the end of the frame is. The disadvantage
is that if the count is garbled by a transmission error, the destination will
lose synchronization and will be unable to locate the start of the next
frame. So, this method is rarely used. Character
stuffing
In the
second method, each frame starts with the ASCII character sequence DLE STX
and ends with the sequence DLE ETX.(where DLE is
Data Link Escape, STX is Start of TeXt and ETX is
End of TeXt.) This method overcomes the drawbacks
of the character count method. If the destination ever loses synchronization,
it only has to look for DLE STX and DLE ETX characters. If
however, binary data
is being transmitted then there exists a possibility of the characters DLE
STX and DLE ETX occurring in the data. Since this can interfere with the
framing, a technique called character stuffing is used. The sender's data
link layer inserts an ASCII DLE character just before the DLE character in
the data. The receiver's data link layer removes this DLE before this data is
given to the network layer. However character
stuffing is closely associated with 8-bit characters and this is a major
hurdle in transmitting arbitrary sized characters. Bit
stuffing
[RGPV June 2013] The
third method allows data frames to contain an arbitrary number of bits and
allows character codes with an arbitrary number of bits per character. At the
start and end of each frame is a flag byte consisting of the special bit
pattern 01111110 . Whenever the sender's data link
layer encounters five consecutive 1s in the data, it automatically stuffs a
zero bit into the outgoing bit stream. This technique is called bit stuffing.
When the receiver sees five consecutive 1s in the incoming data stream,
followed by a zero bit, it automatically destuffs the 0 bit. The boundary
between two frames can be determined by locating the flag pattern. Physical
layer coding violations
The final framing method is physical layer coding
violations and is applicable to networks in which the encoding on the
physical medium contains some
redundancy. In such cases normally, a 1 bit is a high-low pair and a 0 bit is
a low-high pair. The combinations of low-low and high-high which are not used
for data may be used for marking frame boundaries. |
||||||||||||||||
|
Lecture-2 |
||||||||||||||||
|
DATALINK LAYER: FLOW CONTROL Another
important design issue that occurs in the data link layer (and higher layers
as well) is what to do with a sender that systematically wants to transmit
frames faster than the receiver can accept them. This situation can occur
when the sender is running on a fast, powerful computer and the receiver is
running on a slow, low-end machine. A common situation is when a smart phone
requests a Web page from a far more powerful server, which then turns on the
fire hose and blasts the data at the poor helpless phone until it is
completely swamped. Even if the transmission is error free, the receiver may
be unable to handle the frames as fast as they arrive and will lose some.
Clearly, something has to be done to prevent this situation. Two
approaches are commonly used. In the first one, feedback-based flow control,
the receiver sends back information to the sender giving it permission to
send more data, or at least telling the sender how the receiver is doing. In
the second one, rate-based flow control, the protocol has a built-in
mechanism that limits the rate at which senders may transmit data, without
using feedback from the receiver. Feedback-based
schemes are seen at both the link layer and higher layers. The latter is more
common these days, in which case the link layer hardware is designed to run
fast enough that it does not cause loss. For example, hardware
implementations of the link layer as NICs (Network Interface Cards) are
sometimes said to run at ‘‘wire speed,’’ meaning that they can handle frames
as fast as they can arrive on the link. Any overruns are then not a link
problem, so they are handled by higher layers. Various
feedback-based flow control schemes are known, but most of them use the same
basic principle. The protocol contains well-defined rules about when a sender
may transmit the next frame. These rules often prohibit frames from being
sent until the receiver has granted permission, either implicitly or
explicitly. DATA LINK LAYER : ERROR CONTROL There are
many reasons such as noise, cross-talk etc., which may help data to get
corrupted during transmission. The upper layers work on
some generalized view of network architecture and are not aware of actual
hardware data processing.Hence, the upper layers expect error-free transmission
between the systems. Most of the applications would not function expectedly
if they receive erroneous data. Applications such as voice and video may not
be that affected and with some errors they may still function well. Data-link
layer uses some error control mechanism to ensure that frames (data bit
streams) are transmitted with certain level of
accuracy. But to understand how errors is controlled, it is essential to know
what types of errors may occur. Types
of Errors
There may be
three types of errors: ·
Single bit error
In a frame, there is only one
bit, anywhere though, which is corrupt. ·
Multiple bits error
Frame is received with more
than one bits in corrupted state. ·
Burst error
Frame
contains more than1 consecutive bits corrupted. Error
control mechanism may involve two possible ways: ·
Error detection ·
Error correction Error
Detection
Errors in
the received frames are detected by means of Parity Check and Cyclic
Redundancy Check (CRC). In both cases, few extra bits are sent along with
actual data to confirm that bits received at other end are same as they were
sent. If the counter-check at receiver’ end fails, the bits are considered
corrupted. Parity
Check
One extra
bit is sent along with the original bits to make number of 1s either even in case of
even parity, or odd in case of odd parity. The sender
while creating a frame counts the number of 1s in it. For example, if even
parity is used and number of 1s is even then one bit with value 0 is added.
This way number of 1s remains even.If the number of
1s is odd, to make it even a bit with value 1 is added.
The receiver simply counts the number of 1s in a frame. If the count
of 1s is even and even parity is used, the frame is considered to be
not-corrupted and is accepted. If the count of 1s is odd and odd parity is
used, the frame is still not corrupted. If a single bit flips in transit, the receiver can detect it by
counting the number of 1s. But when more than one bits are erro neous, then it is very
hard for the receiver to detect the error. Cyclic
Redundancy Check (CRC)

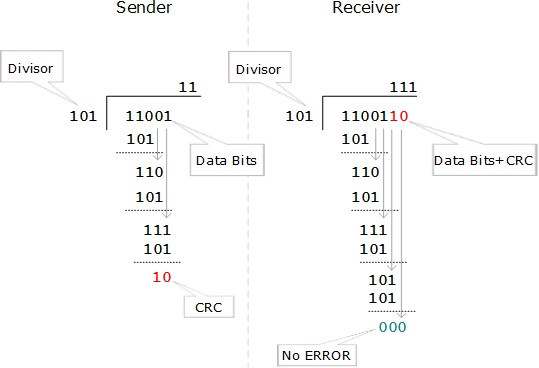

CRC is a different approach to detect if the received frame contains
valid data. This technique involves binary division
of the data bits being sent. The divisor is generated using polynomials. The
sender performs a division operation on the bits being sent and calculates
the remainder. Before sending the actual bits, the sender adds the remainder
at the end of the actual bits. Actual data bits plus the remainder is called
a codeword. The sender transmits data bits as codewords.
At the other end, the receiver performs division operation on
codewords using the same CRC divisor. If the remainder contains all zeros the
data bits are accepted, otherwise it is considered as there some data
corruption occurred in transit. Error
Correction
In the digital world, error correction can be done in two ways: ·
Backward Error Correction When
the receiver detects an error in the data received, it requests back the
sender to retransmit the data unit. ·
Forward Error Correction When the
receiver detects some error in the data received, it executes
error-correcting code, which helps it to auto-recover and to correct some
kinds of errors. The first one, Backward Error Correction, is simple and can only be
efficiently used where retransmitting is not expensive. For example, fiber optics. But in case of wireless transmission
retransmitting may cost too much. In the latter case, Forward Error
Correction is used. To correct the error in data frame, the receiver must know exactly
which bit in the frame is corrupted. To locate the bit in error, redundant
bits are used as parity bits for error detection.For
example, we take ASCII words (7 bits data), then there could be 8 kind of
information we need: first seven bits to tell us which bit is error and one
more bit to tell that there is no error. For m data bits, r redundant bits are used. r bits can provide 2r
combinations of information. In m+r bit codeword,
there is possibility that the r bits themselves may get corrupted. So the
number of r bits used must inform about m+r bit
locations plus no-error information, i.e. m+r+1.
Data-link layer is responsible for implementation of
point-to-point flow and error control mechanism. |
||||||||||||||||
|
Lecture-3 |
||||||||||||||||
|
DATA
LINK LAYER PROTOCOL The basic function of the layer is to transmit
frames over a physical communication link. Transmission may be half duplex or full
duplex. To ensure that frames are delivered free of errors to the destination station
(IMP) a number of requirements are placed on a data link protocol. The
protocol (control mechanism) should be capable of performing:
It
should be noted that as far as layer 2 is concerned a host message is pure
data, every single bit of which is to be delivered to the other host. The
frame header pertains to layer 2 and is never given to the host. Elementary
Data Link Protocols
An unrestricted simplex protocol
In this protocol:
A simplex
stop-and-wait protocol
In this protocol we assume that
These
assumptions imply that the transmitter cannot send frames at a rate faster
than the receiver can process them.The problem here
is how to prevent the sender from flooding the receiver. A general solution to this problem is to have the receiver provide some
sort of feedback to the sender. The process could be as follows: The receiver
send an acknowledge frame back to the sender telling the sender that the last
received frame has been processed and passed to the host; permission to send
the next frame is granted. The sender, after having sent a frame, must wait
for the acknowledge frame from the receiver before sending another frame.
This protocol is known as stop-and-wait. A simplex
protocol for a noisy channel
In this protocol the
unreal "error free" assumption in protocol 2 is dropped. Frames may
be either damaged or lost completely. We assume that transmission errors in
the frame are detected by the hardware checksum. One suggestion is that the sender would send a
frame, the receiver would send an ACK frame only if the frame is received
correctly. If the frame is in error the receiver simply ignores it; the
transmitter would time out and would retransmit it. One fatal flaw with the above scheme is that if
the ACK frame is lost or damaged, duplicate frames are accepted at the
receiver without the receiver knowing it. Imagine a situation where the receiver has just
sent an ACK frame back to the sender saying that it correctly received and
already passed a frame to its host. However, the ACK frame gets lost
completely, the sender times out and retransmits the frame. There is no way for
the receiver to tell whether this frame is a retransmitted frame or a new
frame, so the receiver accepts this duplicate happily and transfers it to the
host. The protocol thus fails in this aspect. To overcome this problem it is required that
the receiver be able to distinguish a frame that it is seeing for the first
time from a retransmission. One way to achieve this is to have the sender put
a sequence number in the header of each frame it sends. The receiver then can
check the sequence number of each arriving frame to see if it is a new frame
or a duplicate to be discarded. The receiver needs to distinguish only 2
possibilities: a new frame or a duplicate; a 1-bit sequence number is
sufficient. At any instant the receiver expects a particular sequence number.
Any wrong sequence numbered frame arriving at the receiver is rejected as a
duplicate. A correctly numbered frame arriving at the receiver is accepted,
passed to the host, and the expected sequence number is incremented by 1
(modulo 2). Sliding
window protocol [RGPV June 2014] Full duplex. A sliding window protocol is
a feature of packet-based data
transmission protocols. Sliding
window protocols are used where reliable in-order delivery of packets is
required, such as in the Data
Link Layer (OSI model) as well
as in the Transmission Control
Protocol (TCP). Conceptually,
each portion of the transmission (packets in most data link layers, but bytes
in TCP) is assigned a unique consecutive sequence number, and the receiver
uses the numbers to place received packets in the correct order, discarding
duplicate packets and identifying missing ones. The problem with this is that
there is no limit on the size of the sequence number that can be
required. The simplest sliding
window: stop-and-wait
[RGPV June 2014] Although commonly distinguished from
the sliding-window protocol, the stop-and-wait ARQ protocol is actually the simplest
possible implementation of it. The transmit window is 1 packet, and the
receive window is 1 packet. Thus, N=1+1=2
possible sequence numbers (conveniently represented by a single bit) are required. Go-Back-N
Go-Back-N ARQ is the sliding window protocol with wt>1, but a
fixed wr=1.
The receiver refuses to accept any packet but the next one in sequence. If a
packet is lost in transit, following packets are ignored until the missing
packet is retransmitted, a minimum loss of one round trip time.
For this reason, it is inefficient on links that suffer frequent packet loss Selective repeat
[RGPV June 2013] The most general case of the sliding
window protocol is Selective Repeat ARQ. This requires a much
more capable receiver, which can accept packets with sequence numbers higher
than the current nr and store them until the gap is
filled in. The advantage, however, is that it
is not necessary to discard following correct data for one round-trip time
before the transmitter can be informed that a retransmission is required.
This is therefore preferred for links with low reliability and/or a high bandwidth-delay product. The window size wr need only be larger than the number
of consecutive lost
packets that can be tolerated. Thus, small values are popular; wr=2
is common. |
||||||||||||||||
|
Lecture-4 |
||||||||||||||||
|
HYBRID ARQ Hybrid automatic repeat request (hybrid ARQ or HARQ) is a combination of high-rate forward error-correcting coding and ARQ error-control. In standard ARQ,
redundant bits are added to data to be transmitted using an error-detecting (ED) code such as a cyclic redundancy check (CRC). Receivers detecting a
corrupted message will request a new message from the sender. In Hybrid ARQ, the original data is encoded with a forward error correction (FEC) code, and the parity bits are
either immediately sent along with the message or only transmitted upon
request when a receiver detects an erroneous message. The ED code may be
omitted when a code is used that can perform both forward error correction (FEC) in addition to error
detection, such as a Reed-Solomon
code. The FEC code is chosen to correct an expected subset of all
errors that may occur, while the ARQ method is used as a fall-back to correct
errors that are in correctable using only the redundancy sent in the initial
transmission. As a result, hybrid ARQ performs better than ordinary ARQ in
poor signal conditions, but in its simplest form this comes at the expense of
significantly lower throughput in good signal conditions. There is typically
a signal quality cross-over point below which simple hybrid ARQ is better,
and above which basic ARQ is better. The simplest version of HARQ, Type I HARQ, adds both ED and FEC
information to each message prior to transmission. When the coded data block
is received, the receiver first decodes the error-correction code. If the
channel quality is good enough, all transmission errors should be
correctable, and the receiver can obtain the correct data block. If the
channel quality is bad, and not all transmission errors can be corrected, the
receiver will detect this situation using the error-detection code, then the
received coded data block is rejected and a re-transmission is requested by
the receiver, similar to ARQ. In a more sophisticated form, Type II HARQ, the message originator
alternates between message bits along with error detecting parity bits and
only FEC parity bits. When the first transmission is received error free, the
FEC parity bits are never sent. Also, two consecutive transmissions can be
combined for error correction if neither is error free. BIT
ORIENTED PROTOCOLS A bit-oriented protocol is a communications protocol that sees the transmitted data as an opaque stream of bits with no semantics,
or meaning. Control codes are defined in terms of bit
sequences instead of characters. Bit oriented protocol can
transfer data frames regardless of frame contents. It can
also be stated as "bit stuffing" this technique allows the
data frames to contain an arbitrary number of bits and allows character codes
with arbitrary number of bits per character. Synchronous framing High-Level Data Link Control is a popular bit-oriented protocol. SDLC Synchronous Data Link Control (SDLC)
is a computer communications protocol. It is the layer 2 protocol for IBM's Systems Network Architecture (SNA). SDLC supports multipoint links as well as
error correction. It also runs under the assumption that an SNA header is
present after the SDLC header. SDLC was mainly used by IBM mainframe and
midrange systems; however, implementations exist on many platforms from many vendors. The use of SDLC
(and SNA) is becoming more and more rare, mostly replaced by IP-based
protocols or being tunneled through IP (using AnyNet or other technologies). SDLC operates independently on each communications link, and can operate on point-to-point multipoint or loop facilities, on switched or dedicated, two-wire or four-wire circuits, and with full-duplex and half-duplex operation. A unique characteristic of SDLC is its ability to mix half-duplex secondary stations with full-duplex primary stations on four-wire circuits, thus reducing the cost of dedicated facilities. Intel used SDLC as a base protocol for BITBUS, still popular in Europe as fieldbus and included support in several controllers (i8044/i8344, i80152). |
||||||||||||||||
|
Lecture-5 |
||||||||||||||||
|
HDLC [RGPV
June 2014] High-Level Data Link Control (HDLC) is a bit-oriented code-transparent synchronous data link layer protocol developed by theInternational Organization for Standardization (ISO). The original ISO standards for HDLC are: ·
ISO 3309 – Frame Structure ·
ISO 4335 – Elements of Procedure ·
ISO 6159 – Unbalanced Classes of
Procedure ·
ISO 6256 – Balanced Classes of
Procedure The current standard for HDLC is ISO 13239, which replaces all of those standards. HDLC provides both connection-oriented and connectionless service. HDLC can be used for point to multipoint connections, but is now used almost exclusively to connect one device to another, using what is known as Asynchronous Balanced Mode (ABM). The original master-slave modes Normal Response Mode (NRM) and Asynchronous Response Mode (ARM) are rarely used. FRAMING HDLC frames can be transmitted over synchronous or asynchronous serial communication links. Those links have no mechanism
to mark the beginning or end of a frame, so the beginning and end of each
frame has to be identified. This is done by using a frame delimiter, or flag, which is a unique
sequence of bits that is guaranteed not to be seen inside a frame. This
sequence is '01111110', or, in hexadecimal notation, 0x7E. Each frame begins
and ends with a frame delimiter. A frame delimiter at the end of a frame may
also mark the start of the next frame. A sequence of 7 or more consecutive
1-bits within a frame will cause the frame to be aborted. When no frames
are being transmitted on a simplex or full-duplex synchronous link, a frame
delimiter is continuously transmitted on the link. Using the standard NRZI encoding from bits to line levels (0
bit = transition, 1 bit = no transition), this generates one of two
continuous waveforms, depending on the initial state:
This is used by modems to train and synchronize their
clocks via phase-locked loops. Some protocols allow the
0-bit at the end of a frame delimiter to be shared with the start of the next
frame delimiter, i.e. '011111101111110'. Frame
structure The contents of an HDLC frame are
shown in the following table:
Note that the end flag of one frame
may be (but does not have to be) the beginning (start) flag of the next
frame. Data is usually sent in multiples of
8 bits, but only some variants require this; others theoretically permit data alignments on other than 8-bit boundaries. The frame check sequence (FCS) is a 16-bit CRC-CCITT or a 32-bit CRC-32 computed over the Address, Control,
and Information fields. It provides a means by which the receiver can detect
errors that may have been induced during the transmission of the frame, such
as lost bits, flipped bits, and extraneous bits. However, given that the
algorithms used to calculate the FCS are such that the probability of certain
types of transmission errors going undetected increases with the length of
the data being checked for errors, the FCS can implicitly limit the practical
size of the frame. If the receiver's calculation of the
FCS does not match that of the sender's, indicating that the frame contains
errors, the receiver can either send a negative acknowledge packet
to the sender, or send nothing. After either receiving a negative acknowledge
packet or timing out waiting for a positive acknowledge packet, the sender
can retransmit the failed frame. The FCS was implemented because many
early communication links had a relatively high bit error rate,
and the FCS could readily be computed by simple, fast circuitry or software.
More effective forward error correction schemes are now widely used by other
protocols. There are three
fundamental types of HDLC frames. ·
Information frames, or I-frames, transport user data from
the network layer. In addition they can also include flow and error control
information piggybacked on data. ·
Supervisory Frames, or S-frames, are used for flow and
error control whenever piggybacking is impossible or inappropriate, such as
when a station does not have data to send. S-frames do not have information fields. ·
Unnumbered frames, or U-frames, are used for various
miscellaneous purposes, including link management. Some U-frames contain an
information field, depending on the type. Piggybacking
[RGPV
June 2014], [RGPV June 2012]
Piggybacking is a bi-directional data transmission technique in the network layer
(OSI model).
It makes the most of the sent data frames from receiver to emitter, adding
the confirmation that the data frame sent by the sender was received
successfully (ACK acknowledge). This practically means, that instead of
sending an acknowledgement in an individual frame it is piggy-backed
on the data frame.
Piggybacking data is a bit different from Sliding Window Protocol used in the OSI
model. In the data frame itself, we incorporate one additional field for
acknowledgment (called ACK). Whenever party A wants to send data to party B, it will send the data
along with this ACK field. Considering the sliding window here of size 8
bits, if A has received frames up to 5 correctly (from B), and wants to send
frames starting from frame 6, it will send ACK6 with the data. Three rules govern the piggybacking data transfer.
|
||||||||||||||||
|
Lecture-6 |
||||||||||||||||
|
BISYNC Binary Synchronous Communication (BSC or Bisync) is
an IBM character-oriented, half-duplex link
protocol, announced in 1967 after
the introduction of System/360. It replaced the synchronous transmit-receive (STR) protocol used with second generation
computers. The intent was that common link management rules could be used
with three different character encodings for messages. Six-bit Transcode looked backwards to older systems. BISYNC establishes rules for
transmitting binary-coded data between a terminal and a host computer's
BISYNC port. While BISYNC is a half-duplex protocol, it will synchronize in
both directions on a full-duplex channel. BISYNC supports both point-to-point
(over leased or dial-up lines) and multipoint transmissions. Each message
must be acknowledged, adding to its overhead. BISYNC is character oriented,
meaning that groups of bits (bytes) are the main elements of transmission,
rather than a stream of bits. The BISYNC frame is pictured next. It starts
with two sync characters that the receiver and transmitter use for
synchronizing. This is followed by a start of header (SOH) command, and then
the header. Following this are the start of text (STX) command and the text.
Finally, an end of text (EOT) command and a cyclic redundancy check (CRC) end
the frame. The CRC provides error detection and correction.
Most of the bisynchronous
protocols, of which there are many, provide only half-duplex transmission and
require an acknowledgment for every block of transmitted data. Some do
provide full-duplex transmission and bit-oriented operation. BISYNC has largely been
replaced by the more powerful SDLC
(Synchronous Data Link Control). Bisync is an acronym shortened from "binary synchronous". Bisync is one of the names commonly used when referring to a synchronous communications protocol introduced by IBM back in 1964 with the introduction of a product called the 270X Transmission Control Unit. The full name of the protocol
is the "Binary Synchronous Communication" protocol. This is usually
abbreviated to "BSC". Whenever you see the terms "bisync" and "BSC" in conjunction with
communications protocols, they are referring to the same thing. Link control
The link control protocol is similar to STR. The designers attempted to
protect against simple transmission errors. The protocol requires that every
message be acknowledged (ACK0/ACK1) or negatively acknowledged (NAK), so
transmission of small packets has high transmission overhead. The protocol
can recover from a corrupted data frame, a lost data frame, and a lost
acknowledgment. Error recovery is by retransmission of the corrupted frame. Since Bisync data packets are not serial-numbered, it's
considered possible for a data frame to go missing without the receiver
realizing it. Therefore, alternating ACK0s and ACK1s are deployed; if the
transmitter receives the wrong ACK, it can assume a data packet (or an ACK)
went missing. A potential flaw is that corruption of ACK0 into ACK1 could
result in duplication of a data frame. Error protection for ACK0 and ACK1 is weak. The Hamming distance
between the two messages is only two bits. The protocol is half-duplex (2-wire). In this
environment, packets or frames of transmission are strictly unidirectional,
necessitating 'turn-around' for even the simplest purposes, such as
acknowledgments. Turn-around involves
In a 2-wire environment, this causes a noticeable round-trip delay and
reduces performance. Some datasets support full-duplex operation, and full-duplex
(4-wire) can be used in many circumstances to improve performance by
eliminating the turn-around time, at the added expense of 4-wire installation
and support. In typical full-duplex, data packets are transmitted along one
wire pair while the acknowledgements are returned along the other. |
||||||||||||||||
|
Lecture-7 |
||||||||||||||||
|
LAP AND LAPB Link Access Procedure (LAP) protocols are Data Link layer protocols for framing and transmitting data across point-to-point links.
LAP was orginally derived from HDLC (High-Level Data Link Control), but was
later updated and renamed LAPB (LAP Balanced). LAPB is the data
link protocol for X.25.LAPB is a bit-oriented protocol derived from HDLC that ensures that frames are error
free and in the right sequence. LAPB is specified in ITU-T Recommendation X.25 and ISO/IEC 7776. It can be used as
a Data Link Layer protocol implementing the
connection-mode data link service in the OSI Reference
Model as defined by ITU-T Recommendation X.222. LAPB is used to
manage communication and packet framing between data terminal equipment (DTE) and the data circuit-terminating equipment
(DCE) devices in the X.25 protocol stack. LAPB is essentially
HDLC in Asynchronous Balanced Mode (ABM). LAPB sessions can be
established by either the DTE or DCE. The station initiating the call is
determined to be the primary, and the responding station is the secondary. Frame types
·
I-Frames (Information frames): Carries
upper-layer information and some control information. I-frame functions
include sequencing, flow control, and error detection and recovery. I-frames
carry send and receive sequence numbers. ·
S-Frames (Supervisory Frames): Carries
control information. S-frame functions include requesting and suspending
transmissions, reporting on status, and acknowledging
the receipt of I-frames. S-frames carry only receive sequence numbers. ·
U-Frames (Unnumbered Frames): carries
control information. U-frame functions include link setup and disconnection,
as well as error reporting. U-frames carry no sequence numbers ·
Frame format
Flag – The value
of the flag is always 0x7E. In order to ensure that the bit pattern of the
frame delimiter flag does not appear in the data field of the frame (and
therefore cause frame misalignment), a technique known as Bit stuffing is used by both the transmitter and
the receiver. Address field – In
LAPB, this field has no meaning since the protocol works in a point to point
mode and the DTE network address is represented in the layer 3 packets. This
byte is therefore put to a different use; it separates the link commands from
the responses and can have only two values: 0x01 and 0x03. 01 identifies
frames containing commands from DTE to DCE and responses to these commands
from DCE to DTE. 03 is used for frames containing commands from DCE to DTE
and for responses from DTE to DCE. Therefore, one side must be configured as
a Layer 2 DTE and the other as a Layer 2 DCE (you must not confuse this with
the more familiar Layer 1 DCE and DTE designations). Control field – it
serves to identify the type of the frame. In addition, it includes sequence
numbers, control features and error tracking according to the frame type. Modes of operation LAPB works in the Asynchronous Balanced Mode
(ABM). This mode is balanced (i.e., no master/slave relationship) and is
signified by the SABM(E)/SM frame. Each station may initialize, supervise,
recover from errors, and send frames at any time. The DTE and DCE are treated
as equals. FCS – The Frame
Check Sequence enables a high level of
physical error control by allowing the integrity of the transmitted frame
data to be checked. Window size – LAPB supports an extended window
size (modulo 128 and modulo 32768) where the maximum number of outstanding
frames for acknowledgment is raised from 7 (modulo 8) to 127 (modulo 128) and
32767 (modulo 32768). Protocol operation
LAPB has no master/slave node relationships.
The sender uses the Poll bit in command frames to insist on an immediate
response. In the response frame this same bit becomes the receivers Final
bit. The receiver always turns on the Final bit in its response to a command
from the sender with the Poll bit set. The P/F bit is generally used when
either end becomes unsure about proper frame sequencing because of a possible
missing acknowledgment, and it is necessary to re-establish a point of
reference. It is also used to trigger an acknowledgment of outstanding
I-frames. |
||||||||||||||||
|
Lecture-8 |
||||||||||||||||
|
Protocol verification:
Finite State Machine Models [RGPV June 2013] A finite-state machine (FSM) or finite-state automaton
(plural: automata), or simply a state machine, is a
mathematical model of computation used to design both computer programs and sequential logic
circuits. It is conceived as an abstract machine
that can be in one of a finite number of states. The machine is in only one
state at a time; the state it is in at any given time is called the current
state. It can change from one state to another when initiated by a
triggering event or condition; this is called a transition. A
particular FSM is defined by a list of its states, and the triggering
condition for each transition. The behavior of state machines can be observed
in many devices in modern society which perform a predetermined sequence of
actions depending on a sequence of events with which they are presented.
Simple examples are vending machines which dispense products when
the proper combination of coins is deposited, elevators
which drop riders off at upper floors before going down, traffic lights
which change sequence when cars are waiting, and combination
locks which require the input of combination numbers in the proper
order. Finite-state machines can model a large number of problems, among which
are electronic design automation, communication protocol design, language parsing
and other engineering applications. In biology
and artificial intelligence research, state
machines or hierarchies of state machines have been used to describe neurological
systems. In linguistics, they are used to describe simple parts of the grammars
of natural languages. Considered as an abstract model of computation, the finite state machine
is weak; it has less computational power than some other models of
computation such as the Turing machine.That is, there are tasks which no FSM can do, but some
Turing machines can. This is because the FSM has limited memory.
The memory is limited by the number of states. FSMs are studied in the more
general field of automata theory. Example: a turnstile
An example of a very simple mechanism that can be modeled
by a state machine is a turnstile. A turnstile, used to control access to subways
and amusement park rides, is a gate with three rotating arms at waist height,
one across the entryway. Initially the arms are locked, barring the entry,
preventing customers from passing through. Depositing a coin or token
in a slot on the turnstile unlocks the arms, allowing a single customer to
push through. After the customer passes through, the arms are locked again
until another coin is inserted. Considered as a state machine, the turnstile has two states: Locked
and Unlocked. There are two inputs that affect its state:
putting a coin in the slot (coin) and pushing the arm (push).
In the locked state, pushing on the arm has no effect; no matter how many
times the input push is given, it stays in the locked state.
Putting a coin in – that is, giving the machine a coin input –
shifts the state from Locked to Unlocked. In the
unlocked state, putting additional coins in has no effect; that is, giving
additional coin inputs does not change the state. However, a
customer pushing through the arms, giving a push input, shifts
the state back to Locked. The turnstile state machine can be represented by a state transition table, showing for each
state the new state and the output (action) resulting from each input
Concepts and terminology
A state is a description of the status of a system that is
waiting to execute a transition. A transition is a set of actions to
be executed when a condition is fulfilled or when an event is received. For
example, when using an audio system to listen to the radio (the system is in
the "radio" state), receiving a "next" stimulus results
in moving to the next station. When the system is in the "CD"
state, the "next" stimulus results in moving to the next track.
Identical stimuli trigger different actions depending on the current state. In some finite-state machine representations, it is also possible to
associate actions with a state:
|
||||||||||||||||
|
Lecture-9 |
||||||||||||||||
|
Petri net A Petri net (also known as
a place/transition net or P/T net) is one of several mathematical
modeling languages
for the description of distributed systems. A Petri net is a
directed bipartite graph, in which the nodes represent
transitions (i.e. events that may occur, signified by bars) and places (i.e.
conditions, signified by circles). The directed arcs describe which places
are pre- and/or postconditions for which transitions (signified by arrows).
Some sources state that Petri nets were invented in August 1939 by Carl Adam Petri
— at the age of 13 — for the purpose of describing chemical processes. Like industry standards such as UML activity
diagrams, BPMN
and EPCs, Petri nets offer a graphical
notation for stepwise processes that include choice, iteration,
and concurrent execution. Unlike these standards,
Petri nets have an exact mathematical definition of their execution
semantics, with a well-developed mathematical theory for process analysis. Petri net basics
A Petri net consists of places,
transitions, and arcs. Arcs run from a place to a
transition or vice versa, never between places or between transitions. The
places from which an arc runs to a transition are called the input places
of the transition; the places to which arcs run from a transition are called
the output places of the transition. Graphically, places in a Petri net may contain a discrete number of marks
called tokens. Any distribution of tokens over the places will
represent a configuration of the net called a marking. In an abstract
sense relating to a Petri net diagram, a transition of a Petri net may fire
if it is enabled, i.e. there are sufficient tokens in all of
its input places; when the transition fires, it consumes the required input
tokens, and creates tokens in its output places. A firing is atomic, i.e., a
single non-interruptible step. Unless an execution policy is defined, the execution of Petri nets
is nondeterministic: when multiple
transitions are enabled at the same time, any one of them may fire. Since firing is nondeterministic, and multiple tokens may be present
anywhere in the net (even in the same place), Petri nets are well suited for modeling the concurrent behavior
of distributed systems. Embedded Control Systems Design/Finite State Machines and Petri Nets
Finite State Machines (FSM) and Petri Nets (PN) are
conceptual models to represent the discrete interactions in a system.
FSM's and
Petri Nets are at a higher level than the actual software. This means it
explains the behavior, but not how it can be implemented. It is an ideal
representation, it doesn’t take time delays in account. Categories of system complexity
Systems of different complexity are represented in different ways. An FSM or UML statechart (similar to FSM, but with more possibilities) can only represent a centralized system, so there is no coordination needed with other systems of its type. Examples of systems of this type are a soda machine, an elevator, ... Systems with distributed hardware and a centralized software state can be represented using Petri Nets. The centralized software coordinates how the different pieces of hardware act on each other. A system with distributed hardware and distributed software state can also be represented by a Petri Net, but in this case there is no central control unit. The different pieces of hardware have their own software state and they all 'know' the Petri Net. Now the different pieces have to coordinate themselves. An example of a distributed system is Robocup. This is a soccer game played by robots. Every robot is a system. If there is a control tower coordinating the robots, this is a case of a centralized software state. The control tower itself can be seen as a system of its own, represented by a statechart with states like 'ball controlled by own team', 'ball controlled by other team', ... In each state, the robots have to cooperate in a different way; this is represented by different Petri Nets. If there is no control tower, each robot has to control itself and they have to coordinate themselves. Each robot then 'knows' the Petri Net and has to make its own decisions, which can introduce some problems. These are handled later in the section 'Petri Net'. Petri Net
Petri Net(PN) is an abstract model to show the interaction between
asynchronous processes. It is only one of the many ways to represent these
interaction. Asynchronous means that the designer doesn't know when the processes
start and in which sequence they'll take place. A common manner to visualize
the concepts is with the use of places, tokens, transitions and arcs. We
refer to the basics of Petri Net for a first introduction in
notations. We want to mention that a transition can only fire when there are
tokens in every input-place. When it fires, one token is taken from every
input-place and every output-place from the transition gets an (extra) token. Places can play the following roles:
Tokens can play the
following roles:
Transitions can play the following roles:
An arc connects only places and transitions and indicates the direction in
which the token travels. |
||||||||||||||||
|
RGPV
PAPER QUESTIONS |
||||||||||||||||
|
S.NO |
Questions |
Year |
Marks |
|
||||||||||||
|
1. |
How framing is done in Data Link
Layer? |
Jun 2016 |
2 |
|
||||||||||||
|
2. |
What is
the role of bit stuffing in data transmission? |
Jun 2016 |
2 |
|
||||||||||||
|
3. |
What is
remainder obtained by dividing x7+x5+1 by the generator
polynomial x3+1? |
Jun 2016 |
3 |
|
||||||||||||
|
4. |
What
conditions would have to hold for a corrupted frame to circulate forever on a
token ring without a monitor? How does the monitor fix this problem? |
Jun 2016 |
7 |
|
||||||||||||
|
5. |
Data link protocols almost always
put the CRC in trailer rather than in header. Why? |
Jun 2016 |
7 |
|
||||||||||||
|
6. |
What are the various functions
performed by the data link layer? |
Jun 2015 |
2 |
|
||||||||||||
|
7. |
What do
you mean by protocol verification? |
Jun 2015 |
2 |
|
||||||||||||
|
8. |
Explain the mechanism of Stop and
Wait ARQ? |
Jun 2015 |
3 |
|
||||||||||||
|
9. |
Explain following: i)SDLC ii) LAP and LAPB |
Jun 2015 |
7 |
|
||||||||||||
|
10. |
A channel
of one mbps with propagation delay of 270 ms transmits frame size 100 bits.
What is the maximum link utilization for Stop and Wait, and sliding window
with window size 7? |
Jun 2015 |
7 |
|
||||||||||||
|
11. |
Explain important functions of Data
Link Layer? |
June 2014 |
3 |
|
||||||||||||
|
12. |
Explain Stop and wait Protocol? |
June 2014 |
2 |
|
||||||||||||
|
13. |
Explain Sliding window Protocol? |
June 2014, |
3 |
|
||||||||||||
|
14. |
What is Piggybacking? What is HDLC |
June 2012 |
10 |
|
||||||||||||
|
15. |
Explain Selective repeat? |
June 2013 |
10 |
|
||||||||||||
|
16. |
Explain Finite state machine |
June 2013 |
10 |
|
||||||||||||
|
17. |
Explain Bit Stuffing? |
June 2013 |
10 |
|
||||||||||||
