UNIT – 3 |
||||||||||||
|
Unit-03/Lecture-01 |
||||||||||||
|
Trees:[RGPV/Dec2014/(2)] A
tree is a Non-Linear Data Structure which consists of set of nodes called
vertices and set of edges which links vertices. ·
A tree is a data structure that is made of nodes and pointers,
much like a linked list. The difference between them lies in how they are
organized:
In a linked list each node is
connected to one “successor” node (via next pointer), that is, it is linear.
In a tree, the nodes can have
several next pointers and thus are not linear. ·
The top node in the tree is
called the root and all other
nodes branch off from this one. ·
Every node in the tree can have
some number of children. Each child node can in turn be the parent node to
its children and so on. Basic
Terminology: BACK
Metal. BACK 5. Efficiency – Fuels on burning should not
pollute the environment with any toxic gases as Combustion products. 6. Low
storage cost - Storage cost in bulk should be low.
Fig-3.1 .1Tree Binary
Tree:[RGPV/June2014] BACK Binary trees are special class of trees
in which max degree for each node is 2 Recursive definition: A binary tree is a finite set of nodes
that is either empty or consists of a root and two disjoint binary trees
called the left subtree and the right subtree. Any tree can be transformed into binary
tree. By left child-right sibling representation.
Fig 3.1.2 ·
A common example of a tree
structure is the binary tree. Definition of binary tree: A
binary tree is a tree that is
limited such that each node has only two children. Examples: ·
The following are NOT binary
trees:
Fig-3.1.4 BACK Property of Binary Tree: [RGPV/Dec2012 (7)] ·
If n1 is the root of a binary
tree and n2 is the root of its left or right tree, then n1 is the parent of n2 and n2 is the left or right child of n1. ·
A node that has no children is
called a leaf. ·
The nodes are siblings if they are left and right
children of the same parent. ·
The level of a node in a binary
tree:
The root of the tree has level 0
The level of any other node in
the tree is one more than the level of its parent.
Fig-3.1.5
|
Unit-03/Lecture-02 |
||||||||||||
|
A
binary tree is said to be complete if all its level except possibly the last,
have maximum number of possible nodes, and if all the nodes at the last level
appear as far left as possible.
A binary tree said to be full if
all its level have maximum number of possible node.
A binary tree is said to be
Extended binary tree if each node has either 0 or 2 children. In this case
the leaf nodes are called external nodes and the nodes with two children are
called internal nodes. Representation of Algebraic Expressions :
Fig-3.2.1 Algebraic
expressions such as a/b+(c-d)e have
an inherent tree-like structure. Above example is a representation of the
expression in Equation The
terminal nodes (leaves) of an expression tree are the variables or constants
in the expression (a, b, c, d, and e). The non-terminal nodes of an
expression tree are the operators (+, -, BACK The
common algebraic operators are either unary or binary. For example, addition,
subtraction, multiplication, and division are all binary operations and
negation is a unary operation. Therefore, the non-terminal nodes of the
corresponding expression trees have either one or two non-empty sub trees.
That is, expression trees are usually binary trees. What
can we do with an expression tree? Perhaps the simplest thing to do is to
print the expression represented by the tree. Notice that an in order
traversal of the tree in Figure
Except
for the missing parentheses, this is precisely the order in which the symbols
appear in Equation This
suggests that an inorder
traversal should be used to print the expression. Consider an inorder
traversal which, when it encounters a terminal node simply prints it out; and
when it encounters a non-terminal node, does the following:
which,
despite the redundant parentheses, represents exactly the same expression as
Equation Expression
trees are useful as a vehicle for discussing the traversal of a tree. An
expression tree is a binary tree which is used to represent a mathematical
expression. For example, if we have the expression (2 * (4 + (5 + 3))), we
could construct a tree to represent it. In
an expression tree, the parent nodes are the operators, and the children are
the operands. To find the result of this expression, we need to first solve
(5 + 3), which is 8, then solve (4 + 8), which is 12, and then finally solve
2 * 12, which is 24. So our root node will contain the operator within the
outermost set of parentheses, its left child will be the value "2",
and the right child will be the remaining expression that needs to be solved,
which would be (4 + (5 + 3)). BACK When
we talked about solving expressions using stacks, we had three different ways
we could represent an expression:
Given
an expression tree, we can generate any of the three representations using
one of the three traversals of a binary tree: in-order, pre-order, and
post-order.
|
Unit-03/Lecture-03 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Binary Tree Representations : Sequential
Representation : The
sequential representation of tree stores data in an array as per the
following rules: 1.
The
root node is stored in 1st position. 2.
Every left and right
child of a parent node at location k will be stored in (2*K)th
position and (2*K+1)th position respectively. The following example shows the representation of binary
tree in an array.
Fig-3.2.4 Suppose an array is representing a tree then its tree
representation will be drawn using the same rule and an example is shown
bellow.
Fig-3.3.1 Linked Representation of Tree: [RGPV/Dec2012 (7)] The Linked representations of tree, maintains three
parallel arrays. An INFO array contains the data of each node, LEFT array
contains the location of left child and RIGHT array contains location of
right child. A ROOT pointer points to the root node of the tree. LEFT INFO
RIGHT
Fig-3.3.2 .
|
|
Unit-03/Lecture-04 |
||||||||||||||||
|
Binary
Tree Traversal Techniques: [RGPV/Dec2011
(7)] [RGPV/Dec2013 (7)] Traversal of a binary tree refers to the process of visiting all
the nodes of the tree, in some specific sequence. For a linked list, the
traversal was done in the natural order of the list, starting from the first
node and ending at the last. In a tree,
there are many ways in which one could traverse all the nodes. Visiting a node generally means retrieving the data item
contained in the node, and sending it to some process (printing, for
example). The three traversal
orders are defined as follows: (i)
Preorder Traversal: (VLR) o
Visit the current node. o
Traverse the left sub-tree of the current node. o
Traverse the right sub-tree of the current node. Preorder traversal can be implemented as a recursive function : BACK We can generate a prefix expression using a pre-order traversal.
Much like for the in-order traversal, we will use recursion to print the
entire left subtree and the entire right subtree. In a prefix expression, the
operator comes before its two operands, so we will have to print out the
parent node's data before recursively printing its left and right children.
So
instead of printing the data after we have printed the left subtree, we are
going to print the data first, so that the operator will print out before its
operands, giving us the prefix representation of the expression. (ii)
Inorder Traversal: (LVR) o
Traverse the left sub-tree of the current node. o
Visit the current node. o
Traverse the right sub-tree of the current node. Inorder traversal can be implemented as a recursive function: In an infix expression, the
operator comes between its operands, so if we want to generate the infix
expression from an expression tree, we will need to print the operand on the
left before we print out the operator. But what if the left operand is another
expression to evaluate? We use recursion. We print out the entire left
subtree, then print the current node, then print out the entire right
subtree.
In this code, "root" refers to
the root of the current subtree, not the root of the whole tree (although we
would have to start at the root of the whole tree). So, how does this work?
Let's look at the steps that this method takes for the simple expression 5 +
3 (for convenience, the nodes have been numbered): (iii)
Postorder Traversal: (LRV) [RGPV/June
2011 (10)] BACK o
Traverse the left sub-tree of the current node. o
Traverse the right sub-tree of the current node. o
Visit the current node. Postorder traversal can be implemented as a recursive function: By now, you should see a pattern.
The last representation is postfix, and we will use a post-order traversal to
obtain it. Since in postfix the operator comes after its two operands, will
recursively print the left and right subtrees before we print out the data at
the current node.
Example:
a g f e d c b root Fig -3.4.1 Preorder: a b c d f g e Inorder: b a f d g c e Postorder: b f g d e c |
|
S.NO |
RGPV QUESTIONS |
Year |
Marks |
|
Q.1 |
Write the recursive Inorder,Preorder,and PostorderTree
traversing algorithms |
Dec 2013 Dec 2011 |
7 7 |
|
Q.2 |
Write the non recursive PostorderTree traversing algorithms |
June 2011 |
10 |
|
Unit-03/Lecture-05 |
|||
|
Example on Binary tree Traversing [RGPV/June 2011 (10)]
Fig-3.5.1 Threads
and Threaded Binary Tree: [RGPV/Dec 2013 (7)] Approximately half of the entries in the pointer fields
Left and right of any binary tree contains null elements. Replacing the null
entries by some other type of information may more efficiently use this
space. Specifically, we will replace certain null entries by special
pointers, which point to nodes higher in the tree. These special pointers are
called threads and the tree is called threaded binary tree. There are many ways to thread a binary tree, but each
threading will correspond to a particular traversal of tree. Unless otherwise
stated, threading will correspond to in-order traversal.There are two types
of threading: Ø One
way threading Ø Two
way threading In one way threading, either left pointer or right pointer
will be used for threading. When left pointer used to point the predecessor
node of the tree according to in-order traversal, then the threading is
called left-in threading. When a right pointer is used to point the successor
node according to in-order traversal, then the threading is called right-in
threading. In two way threading both left and right pointers are used
to point predecessor and successor nodes of the tree according to in-order
traversal Binary Search Tree (BST) A Binary Search Tree (BST) is a binary tree which follows the
following conditions
Fig-3.5.2 Example:
Fig-3.5.3 |
|||
|
S.NO |
RGPV QUESTIONS |
Year |
Marks |
|
Q.1 |
What is threaded binery tree ?Explain and Create the threaded
binary tree for the given tree |
Dec 2013 |
7 |
|
Q.2 |
Using
the sequence given below,construct Binary tree Preorder
:A B
C D E
F G H I Inorder
:B C
A E D
G H F I |
June 2011 |
10 |
|
UNIT 3/LECTURE 6 |
||||||||||||||||||||
|
Valid Operations on Binary Search Tree: [RGPV/June 2012 (3.5)] [RGPV/Dec 2012 (3.5)]
[RGPV/Dec 2011 (3.5)]
Inserting Nodes to a BST : In a BST, a new node will always be inserted at a NULL pointer.
We never have to rearrange existing nodes to make room for a new one. Deleting
Nodes from a BST : [RGPV/Dec 2011 (7)] a)
Deleting
a leaf node: Replace the link to the deleted node by NULL. b)
Deleting
a node with one empty subtree.
Fig-3.6.1 c) Deleting a node with both left and right subtrees. Any deleted
value that has two children must be replaced by an existing value that is one
of the following: -
The largest value in the deleted
node’s left subtree -
The smallest value in the deleted
node’s right subtree.
Fig-3.6.2
BACK Searching a binary search tree: Starting
at the root node, the search algorithm compares the search key with the data
stored in the current node. (a) If the search key is equal to the data of
the current node, the value has been found, and the search is terminated. (b) If the search key is greater than the
data of the current node, the search proceeds with the right child as the new
current node. (c) If the search key is less than the data
of the current node, the search proceeds with the left child as the new
current node. (d) If the current node is null, the search
is terminated as unsuccessful. Algorithm SearchBST(val root
<pointer>,Val argument <key>) Search a binary search tree for a given value Pre
: root is the root to a binary tree Return the node address if the value is found or null if the node is
not in the tree 1 if (root is null) 1 return null 2 end if 3 if (argument < root->key) 1 return
searchBST(root->left, argument) BACK 4 elseif (argument > root->key) 1 return
searchBST(root->right, argument) 5 else 1 return root 6 end if end searchBST 6 end if end searchBST Since the above search algorithm visits at most one node in each
level of the binary tree, the algorithm runs in Q(h)
time, where h is the height of the tree.
|
|
UNIT 3/LECTURE 7 |
||||||||||||||||||||
|
Avl Tree:
[RGPV/Dec 2012 (7)] [RGPV/June 2012 (7)] Definition : ·
Empty BST is an AVL tree ·
Non-empty BST is an AVL tree if 1. Balance factor-Height of the left and right subtrees don’t
differ by more than 1 2. Left and right subtrees are AVL trees ·
If height of left subtree is same
as the height of right subtree, balance factor is 0 ·
If height of left subtree is 1
more than the height of right subtree, balance factor is 1 ·
If height of left subtree is 2
more than the height of right subtree, balance factor is 2 ·
If height of left subtree is 1
less than the height of right subtree, balance factor is -1 ·
If height of left subtree is 2
less than the height of right subtree, balance factor is -2 ·
Whenever balance factor of a
subtree becomes +/- 2, we use rotation to fix that subtree. ·
We have to identify what type of
rotation we need and where we need it ·
WHERE: Start from the item inserted
last and keep going up until we see a non-AVL tree ·
WHAT TYPE: 1.
LL type: Left subtree was longer,
the new item went to the left of left subtree. See board for example. 2.
LR type: Left subtree was longer,
the new item went to the right of left subtree. See board for example. 3.
RR type: Right subtree was
longer, the new item went to the right of right subtree. See board for
example. 4.
RL type: Right subtree was
longer, the new item went to the left of right subtree. See board for
example. ·
Clock-wise rotation: ·
root of left subtree is the new
root ·
old root is the right child of
new root ·
old right child of new root is
now the left child of old root ·
Counter Clock-wise rotation: ·
root of right subtree is the new
root ·
old root is the left child of new
root ·
old left child of new root is now
the right child of old root
Fig-3.7.1 Operations of Avl tree: [RGPV/Dec
2011 (7)]
Here are the four cases we will look at: 1) insertion into the left subtree of the left child of the root.(LL) 2) insertion into the right subtree of the left child of the root.(LR) 3) insertion into the left subtree of the right child of the root.()RL 4) insertion into the right subtree of the right child of the root.(RR) The left picture is case 2 of this description, and the right picture
is case 4. Why is the case on the left called a double rotation? Because we
can achieve it by performing two rotations on the root node: C C /
\ / \ A T3 B T3 / \ ====> / \ T0 B L A T2 /
\ / \ T1 T2 T0 T1 B /
\ ====> A C R /
\ / \ T0 T1 T2 T3 Fig-3.7.2 Insertion into
an AVL Tree BACK So, now the question is, how can we use these rotations to actually
perform an insert on an AVL tree? Here are the basic steps involved: 1) Do a normal binary tree insert. 2) Restoring the tree based on this leaf node. This restoration is more difficult than just following the steps above.
Here are the steps involved in the restoration of a node: 1) Calculate the heights of the left and right subtrees, use this to
set the potentially new height of the node. 2) If they are within one of each other, just go up to the parent node
and continue. 3) If not, then perform the appropriate restructuring described above
on that particular node, THEN go to the parent node and continue. 4) Stop when you've reached the root node. With insertion, we are guaranteed that we will at most rebalance the
tree once. When we march up the tree, at each step we are updating the height of
that node, if necessary. The only nodes that need to be updated are those on
the ancestral "lineage" of the inserted node. Deletion from an
AVL Tree BACK First we will do a normal binary search tree delete. Note that
structurally speaking, all deletes from a binary search tree delete nodes
with zero or one child. For deleted leaf nodes, clearly the heights of the
children of the node do not change. Also, the heights of the children of a
deleted node with one child do not change either. Thus, if a delete causes a
violation of the AVL Tree height property, this would HAVE to occur on some
node on the path from the parent of the deleted node to the root node. Thus, once again, as above, to restructure the tree after a delete we
will call the restructure method on the parent of the deleted node. One thing
to note: whereas in an insert there is at most one node that needs to be
rebalanced, there may be multiple nodes in the delete that need to be
rebalanced. Technically speaking, at any point in the restructuring algorithm
ONLY one node will ever be unbalanced. But, what may happen is when that node
is fixed, it may propagate an error to an ancestor node. But, this is NOT a
problem because our restructuring algorithm goes all the way to the root
node.
|
|
UNIT 3/LECTURE 8 |
||||||||||||||||
|
AVL Tree Examples : [RGPV/June 2011 (10)] [RGPV/June 2012 (7)]
[RGPV/Dec 2011 (3.5)] [RGPV/Dec 2012 (3.5)] 1) Consider inserting 46 into the following AVL Tree: BACK 32 / \ 16 48 / \ /
\ 8 24 40
56 /
\ / \ 36
44 52 60
\ 46, inserted here Fig-3.8.1 Initially, using the standard binary
search tree insert, 46 would go to the right of 44. Now, let's trace through
the rebalancing process from this place. First, we call the method on this
node. Once we set its height, we check to see if the node is balanced. (This
simply looks up the heights of the left and right subtrees, and decides if
the difference is more than 1.) In this case, the node is balanced, so we
march up to the parent node, that stores 44. We will trace through the same steps
here, setting the new height of this node (this is important!) and
determining that this node is balanced, since its left subtree has a height
of -1 and the right subtree has a height of 0. Similarly, we set the height and
decide that the nodes storing 40 and 48 are balanced as well. Finally, when
we reach the root node storing 32, we realize that our tree is imbalanced. Now, we finally get to execute the
code inside the if statement in the rebalance method. Here we set xPos to be
the tallest grandchild of the root node. (This is the node storing 40, since
its height is 2.) Thus, the restructuring occurs on the nodes containing the
32, 48 and 40. Using the method described from last lecture, we will
restructure the tree as follows: 40 / \
32 48 / \
/ \ 16 36 44 56 / \ \ /
\ 8 24
46 52 60 Fig-3.8.2 Using the variables from the last
lecture, the node storing 40 is B, the node storing 32 is A, and the node
storing 48 is C. T0 is the subtree rooted at 16, T1 is
the subtree rooted at 36, T2 is the subtree rooted at 44, and T3
is the subtree rooted at 56. 2) Now, for the second example, consider inserting 61 into the following
AVL Tree: 32 / \ 16 48 /
\ / \ 8
24 40 56 / / \
/ \ 4 36 44
52 60
/ \
58 62
/ 61, inserted Fig-3.8.3 Tracing through the code, we find the
first place an imbalance occurs tracing up the ancestry of the node storing
61 is at the noce storing 56. This time, we have that node A stores 56, node
B stores 60, and node C stores 62. Using our restucturing algorithm, we find
the tallest grandchild of 56 to be 62, and rearrange the tree as follows: 32 / \ 16 48 /
\ / \ 8
24 40 60 / / \
/ \ 4 36 44
56 62
/ \ /
52 58 61
Fig-3.8.4 T0 is the subtree rooted at
52, T1 is the subtree rooted at 58, T2 is the subtree
rooted at 61, and T3 is a null subtree. 3) For this example, we will delete the node storing 8 from the AVL
tree below: 32 / \ 16 48 /
\ / \ 8
24 40 56 \ /
\ /
\ 28 36
44 52 60
/ \ 58
62 Fig-3.8.5 Tracing through the code, we find that
we must first call the rebalance method on the parent of the deleted node,
which stores 16. This node needs rebalancing and gets restructured as
follows: 32 / \ 24 48 /
\ / \ 16
28 40 56 /
\ /
\ 36
44 52 60
/ \ 58
62 Fig-3.8.6 Notice that all four subtrees for this
restructuring are null, and we only use the nodes A, B, and C. Next, we march
up to the parent of the node storing 24, the node storing 32. Once again,
this node is imbalanced. The reason for this is that the restructuring of the
node with a 16 reduced the height of that subtree. By doing so, there was in
INCREASE in the difference of height between the subtrees of the old parent
of the node storing 16. This increase could propogate an imbalance in the AVL
tree. When we restructure at the node
storing the 32, we identify the node storing the 56 as the tallest
grandchild. Following the steps we've done previously, we get the final tree
as follows: 48 / \ 32 56 /
\ / \ 24
40 52 60 / \
/ \ /
\ 16
28 36 44 58 62 Fig-3.8.7 4) The final example, we will delete the node storing 4 from the AVL
tree below: 32 / \ 16 48 /
\ / \ 8
24 40 56 / / \
/ \ 4 36 44
52 60 /
\ 58
62 Fig-3.8.8 When we call rebalance on the node
storing an 8, (the parent of the deleted node), we do NOT find an imbalance
at an ancestral node until we get to the root node of the tree. Here we once
again identify the node storing 32 as node A, the node storing 48 as node B
and the node storing 56 as node C. Accordingly, we restructure as follows: 48 / \ 32 56 /
\ / \ 16
40 52 60 / \
/ \ /
\ 8
24 36 44 58 62 Fig-3.8.9
|
|
UNIT 3/LECTURE 9 |
||||||||||||||||
|
B Trees are a special case of the tree
data structure. First we will review
tree structures and search trees, then talk about B-Trees and later B+ Trees.
BACK Fig-3.9.1 ·
A common way to implement a tree
is to have as many pointers in a node as there are children of the node. ·
As well, a parent pointer can
also be stored in each node. ·
Nodes usually contain some type
of stored information. When a
multilevel index is implemented as a tree structure, the information includes
values of the files’ indexing field that are used to guide the search for a
record. Multilevel Indexes as Special Search Trees
Multilevel indexes can be thought of as a
variation of a search tree(a special type of tree that is used to guide the
search for a record with record field value V) Each node can have as many as fo pointers
and fo key values, where fo is the index fo (blocking factor of the index).
Fig-3.9.2 The index values in each node guide us to the
next node, until you reach the data file block that contains the required
records. By following a pointer, the
search is restricted at each level to a subtree of the search tree, and the
nodes not in the subtree are ignored Search Trees :
Fig-3.9.3 A search tree of order p
is such that each node contains at most p-1 search values and p pointers in
the following order: <P1, K1, P2, K2…Kq-1,
Pq>, where:
Two constraints must
hold on the search tree: 1.
Within each
node, the key values are ordered (K1 < K2 <
…<Kq-1>) 2.
For all values X
in the subtree pointed to by Pi, ·
For 1 < i
< q, Ki-1 <X < Ki ·
For i = 1, X
< K, and ·
For i = q, Ki-1
< X, When searching for a
value X, you follow the pointers, P, using the above conditions.
Fig-3.9.4 The values in the tree
can be one of the fields in the file called the search field. This is the same as the index field as a
file. Each key value is associated
with a pointer, either to a record in the data file having that search key
value, or a pointer to the block containing the record with the search key value. The tree in the first
diagram is not balanced, meaning that leaf nodes can be found at different
levels. This is not an efficient
organization, because some nodes may be at very high levels, requiring many
block accesses. The B-Tree addresses
this problem by specifying additional constraints.
B Trees : [RGPV/June
2011 (10)] [RGPV/June 2012 (7)] [RGPV/Dec 2013 (7)]
The B-Tree has
additional constraints to ensure the tree is aways balanced, and the space
wasted by deletion never becomes excessive. BACK
The formal definition of a B-Tree of order p,
when used as an access structure on a key field, to search for a record is as
follows: 1.
Each internal
node in the tree is of the form: <P1, <K1, Pr1>,
P2, <K2, Pr2>… <Kq-1, Prq-1>,
Pq> , where q<=p.
Each P is a tree pointer, a pointer to a node in the tree, and each Pr
is a data pointer, a pointer to the record whose search key field value is
equal to K. 2.
The key values,
Ki…Kq-1 are ordered within each node. 3.
For all search
key values X in the subtree pointed at by Pi, the ith subtree, we
have: ·
For 1 < i
< q, Ki-1 < X < Ki , ·
For i = 1, X < Ki, ·
For i = q, Ki-1
< X 4.
Each node has at
most p tree pointers. BACK 5.
Each node except
the root has at least ép/2ù tree
pointers. The root node has at least
two tree pointers unless it is the only node in the tree. 6.
A node with q
tree pointers, q<=p had q-1 search key field values and hence q-1 data
pointers. 7.
All leaf nodes
are at the same level. Leaf nodes have
the same structure as internal nodes except that all of their tree pointers Pi
are null. We assumes the B-Tree access structure is on a
key field, therefore the values are unique.
If the B-Tree is used on a non-key field, the pointer would point to a
cluster of blocks that contain blocks of file pointers, similar to option 3
for secondary indexes.
|
|
UNIT 3/LECTURE 10/ADDITIONAL TOPIC |
|
Huffman Coding Algorithm : The idea behind Huffman coding is to
find a way to compress the storage of data using variable length codes. Our
standard model of storing data uses fixed length codes. For example, each
character in a text file is stored using 8 bits. There are certain advantages
to this system. When reading a file, we know to ALWAYS read 8 bits at a time
to read a single character. But as you might imagine, this coding scheme is
inefficient. The reason for this is that some characters are more frequently
used than other characters. Let's say that the character 'e' is used 10 times
more frequently than the character 'q'. It would then be advantageous for us
to use a 7 bit code for e and a 9 bit code for q instead because that could
shorten our overall message length. Huffman coding finds the optimal way
to take advantage of varying character frequencies in a particular file. On
average, using Huffman coding on standard files can shrink them anywhere from
10% to 30% depending to the character distribution. (The more skewed the
distribution, the better Huffman coding will do.) The idea behind the coding is to give
less frequent characters and groups of characters longer codes. Also, the
coding is constructed in such a way that no two constructed codes are
prefixes of each other. This property about the code is crucial with respect
to easily deciphering the code. BACK
Now, repeat
this process until only one tree is left:

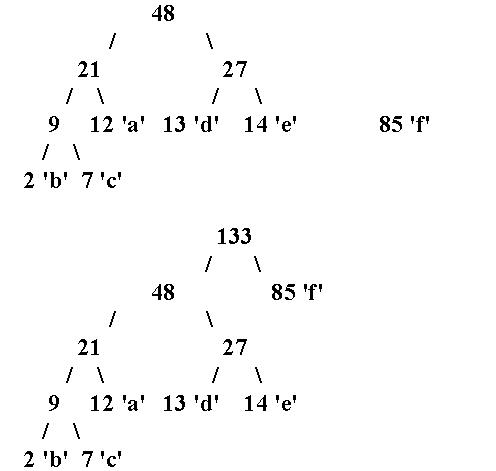

Fig-3.1a.1
Fig-3.1a.2 Once the tree is built, each leaf node
corresponds to a letter with a code. To determine the code for a particular
node, walk a standard search path from the root to the leaf node in question.
For each step to the left, append a 0 to the code and for each step right
append a 1. Thus for the tree above we get the following codes: Letter Code 'a' 001 'b' 0000 'c' 0001 'd' 010 'e' 011 'f' 1 |
